3113-1-00-15-00-00-08-0

Mill-MaxMill-Max

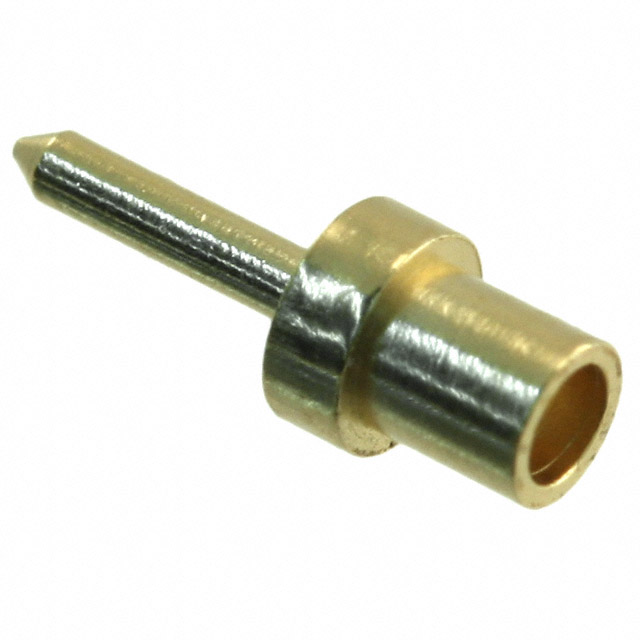

3113-1-00-15-00-00-08-0 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 3113-1-00-15-00-00-08-0
Manufacturer/Brand: Mill-Max
Product description CONN PC PIN CIRC 0.025DIA GOLD
Datasheets: 3113-1-00-15-00-00-08-0.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 908066 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 908066 pcs
Reference Price (In US Dollars)
1 pcs
$0.062
10 pcs
$0.06
25 pcs
$0.051
50 pcs
$0.045
100 pcs
$0.041
250 pcs
$0.037
500 pcs
$0.035
1000 pcs
$0.029
2500 pcs
$0.026
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.062

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 3113-1-00-15-00-00-08-0

Part Number 3113-1-00-15-00-00-08-0 Manufacturer Mill-Max
Description CONN PC PIN CIRC 0.025DIA GOLD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 908066 pcs Data sheet 3113-1-00-15-00-00-08-0.pdf
Termination Swage Terminal Type PC Pin
Terminal Style Single End Series 3113
Pin Size - Below Flange - Pin Size - Above Flange 0.025" (0.64mm) Dia
Packaging Bulk Other Names 3.1131E+15
3113-100150000080
3113-100150000080-ND
3113100150000080
ED1078
Mounting Type Through Hole Mounting Hole Diameter 0.062" (1.57mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material - Insulation -
Manufacturer Standard Lead Time 5 Weeks Length - Overall 0.217" (5.51mm)
Length - Below Flange 0.062" (1.57mm) Length - Above Flange 0.125" (3.18mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Color -
Insulation Non-Insulated Flange Diameter 0.078" (1.98mm)
Detailed Description PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia Contact Material Brass Alloy
Contact Finish Thickness 10.0µin (0.25µm) Contact Finish Gold
Board Thickness 0.031" (0.79mm)
