Mill-Max

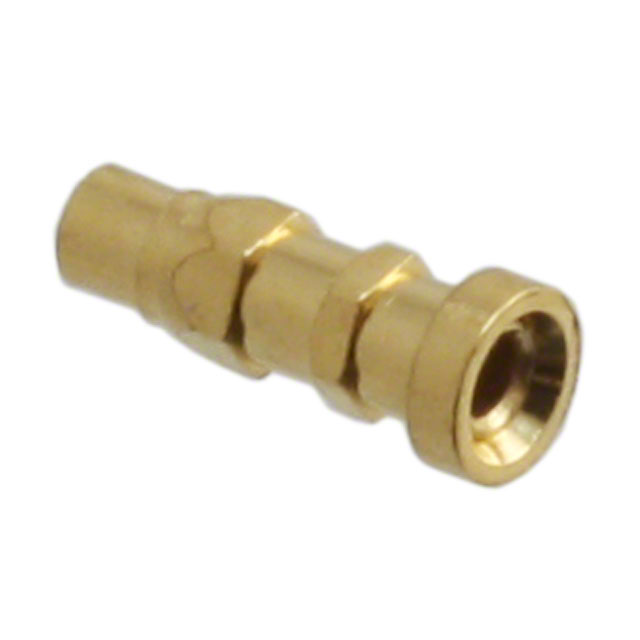

| Part Number | 0560-0-15-15-11-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.020 HEX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 560883 pcs | Data sheet | 1.0560-0-15-15-11-27-10-0.pdf2.0560-0-15-15-11-27-10-0.pdf |
| Termination | Press-Fit, Hex | Tail Type | No Tail |
| Tail Diameter | - | Socket Depth | 0.140" (3.56mm) |
| Series | 560 | Pin Hole Diameter | 0.031" (0.79mm) |
| Packaging | Bulk | Other Names | 0560-015151127100 0560-015151127100-ND 0560015151127100 560015151127100 ED1023 |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.043" (1.09mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.140" (3.56mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | - | Flange Diameter | 0.055" (1.40mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.015" ~ 0.020" (0.38mm ~ 0.51mm) |
