APT65GP60L2DQ2G

MicrosemiMicrosemi

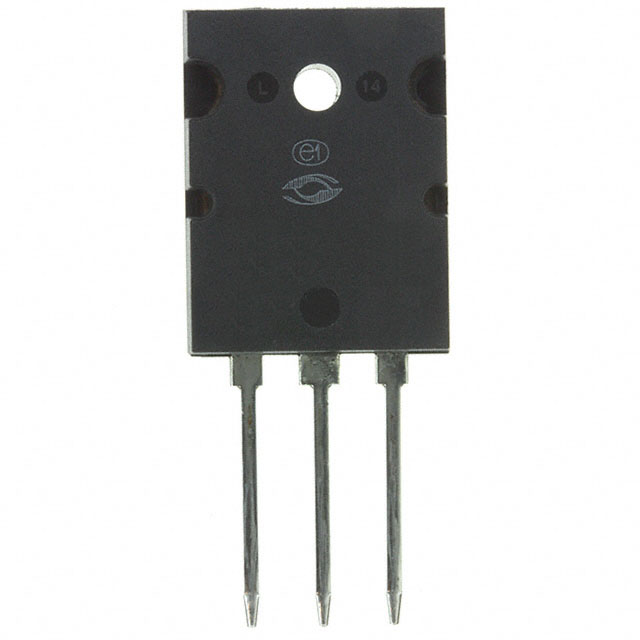

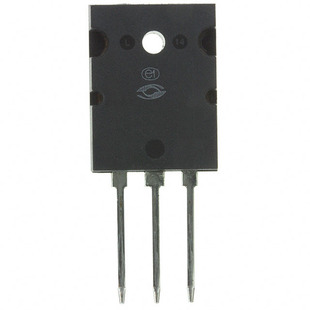

APT65GP60L2DQ2G Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: APT65GP60L2DQ2G
Manufacturer/Brand: Microsemi
Product description IGBT 600V 198A 833W TO264
Datasheets: APT65GP60L2DQ2G.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4549 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4549 pcs
Reference Price (In US Dollars)
25 pcs
$6.93
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$6.93

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of APT65GP60L2DQ2G

Part Number APT65GP60L2DQ2G Manufacturer Microsemi
Description IGBT 600V 198A 833W TO264 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4549 pcs Data sheet APT65GP60L2DQ2G.pdf
Voltage - Collector Emitter Breakdown (Max) 600V Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 65A
Test Condition 400V, 65A, 5 Ohm, 15V Td (on/off) @ 25°C 30ns/90ns
Switching Energy 605µJ (on), 895µJ (off) Series POWER MOS 7®
Power - Max 833W Packaging Tube
Package / Case TO-264-3, TO-264AA Other Names APT65GP60L2DQ2GMI
APT65GP60L2DQ2GMI-ND
Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type Standard IGBT Type PT
Gate Charge 210nC Detailed Description IGBT PT 600V 198A 833W Through Hole
Current - Collector Pulsed (Icm) 250A Current - Collector (Ic) (Max) 198A
