DSPIC33CH128MP503T-I/M5

Micrel / Microchip Technology

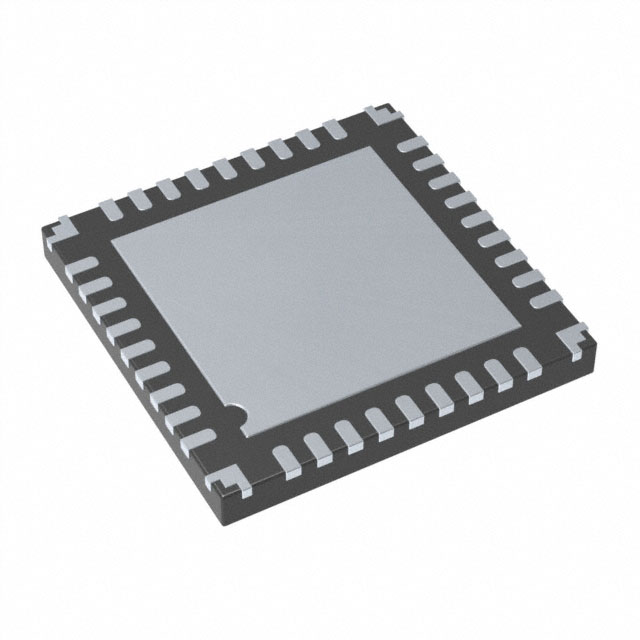

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DSPIC33CH128MP503T-I/M5
Manufacturer/Brand:	Micrel / Microchip Technology
Product description	16 BIT DSC, DUAL CORE, 128K FLAS
Datasheets:	DSPIC33CH128MP503T-I/M5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23045 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23045 pcs

Reference Price (In US Dollars)

3300 pcs: $1.349

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.349

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DSPIC33CH128MP503T-I/M5

Part Number	DSPIC33CH128MP503T-I/M5	Manufacturer	Micrel / Microchip Technology
Description	16 BIT DSC, DUAL CORE, 128K FLAS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23045 pcs	Data sheet	DSPIC33CH128MP503T-I/M5.pdf
Voltage - Supply (Vcc/Vdd)	3 V ~ 3.6 V	Supplier Device Package	36-UQFN (5x5)
Speed	180MHz, 200MHz	Series	dsPIC™ 33CH
RAM Size	20K x 8	Program Memory Type	FLASH/PRAM
Program Memory Size	152KB (152K x 8)	Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT
Packaging	Tape & Reel (TR)	Package / Case	36-UFQFN Exposed Pad
Other Names	DSPIC33CH128MP503T-I/M5TR	Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)	Number of I/O	27
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	EEPROM Size	-
Detailed Description	dsPIC dsPIC™ 33CH Microcontroller IC 16-Bit Dual-Core 180MHz, 200MHz 152KB (152K x 8) FLASH/PRAM 36-UQFN (5x5)	Data Converters	A/D 31x12b, D/A 4x12b
Core Size	16-Bit Dual-Core	Core Processor	dsPIC
Connectivity	CANbus, I²C, IrDA, LINbus, SPI, UART/USART
