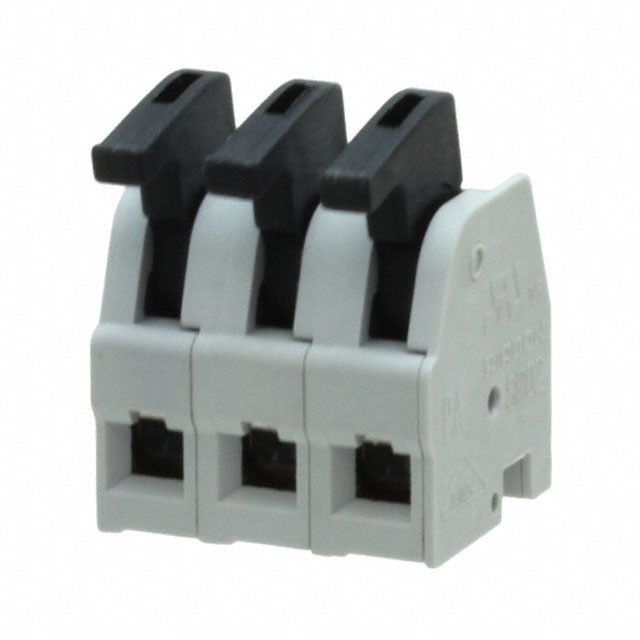

METZ CONNECT
| Part Number | ASP0250304 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SPRING CLAMP TERMINAL BLOCK, PLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71030 pcs | Data sheet | ASP0250304.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug for Unshrouded Header | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | - |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1849-1099 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.543" (13.80mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Header Orientation | - |
| Features | Lever Actuated | Detailed Description | 3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Gray |
