METZ CONNECT

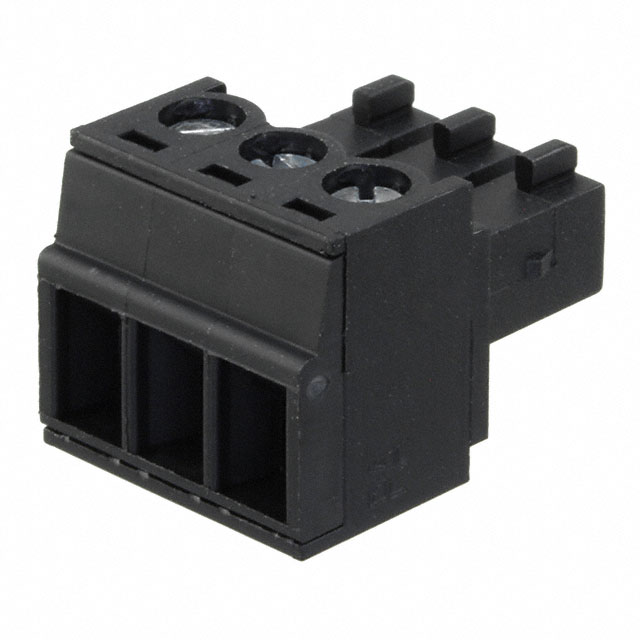

| Part Number | 31369103 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SCREW TYPE TERMINAL BLOCK, PLUG, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91155 pcs | Data sheet | 31369103.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.34 Nm (3.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | - |
| Screw Size | M2 | Positions Per Level | 3 |
| Plug Wire Entry | 180° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 1849-1143 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | - |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Zinc |
| Color | Black |
