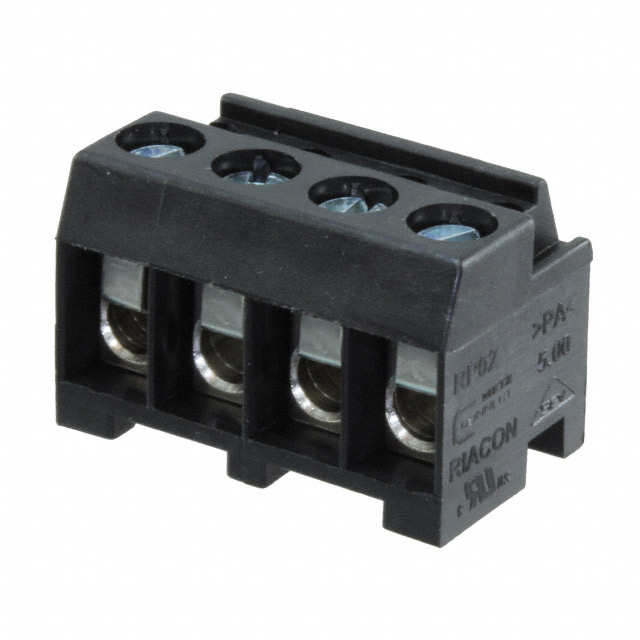

METZ CONNECT
| Part Number | 31007104 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SCREW TYPE TERMINAL BLOCK, PLUG, | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93422 pcs | Data sheet | 31007104.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.33-2.5mm² |
| Wire Gauge or Range - AWG | 12-22 AWG | Voltage - UL | 300V |
| Type | Plug for Unshrouded Header | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Leaf Spring, Wire Guard | Series | - |
| Screw Size | M3 | Positions Per Level | 4 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1849-1116 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.504" (12.80mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | - |
| Detailed Description | 4 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Gold, Nickel Alloy | Contact Material | Copper Beryllium |
| Color | Black |
