SML-Z14DTT86A

LAPIS Semiconductor

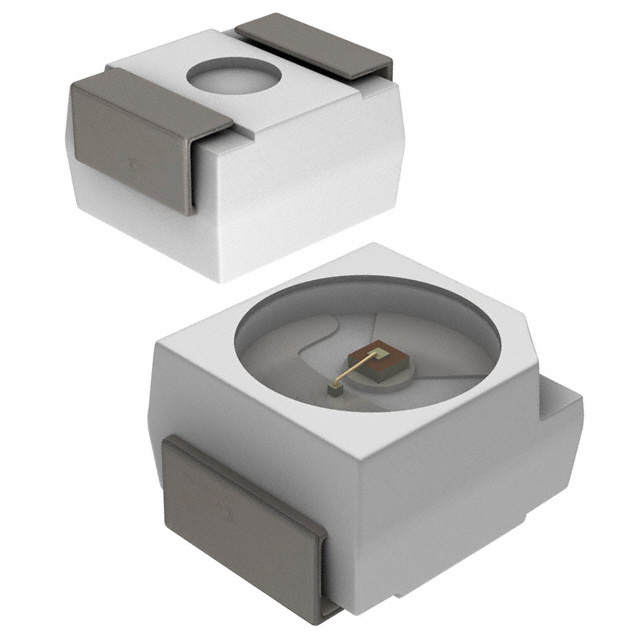

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SML-Z14DTT86A
Manufacturer/Brand:	LAPIS Semiconductor
Product description	LED ORANGE CLEAR 2PLCC SMD
Datasheets:	SML-Z14DTT86A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	285301 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 285301 pcs

Reference Price (In US Dollars)

1 pcs: $0.232

10 pcs: $0.182

25 pcs: $0.151

100 pcs: $0.13

250 pcs: $0.116

500 pcs: $0.10

1000 pcs: $0.077

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.232

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SML-Z14DTT86A

Part Number	SML-Z14DTT86A	Manufacturer	LAPIS Semiconductor
Description	LED ORANGE CLEAR 2PLCC SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	285301 pcs	Data sheet	SML-Z14DTT86A.pdf
Wavelength - Peak	-	Wavelength - Dominant	605nm
Voltage - Forward (Vf) (Typ)	1.9V	Viewing Angle	-
Supplier Device Package	2-PLCC	Size / Dimension	3.20mm L x 2.80mm W
Series	SML-Z1	Packaging	Cut Tape (CT)
Package / Case	2-PLCC	Other Names	511-1643-1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	4 (72 Hours)
Millicandela Rating	280mcd	Lens Transparency	Clear
Lens Style/Size	Round with Flat Top, 2.40mm	Lens Color	Colorless
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	2.05mm
Features	-	Detailed Description	Orange 605nm LED Indication - Discrete 1.9V 2-PLCC
Current - Test	20mA	Configuration	Standard
Color	Orange	Base Part Number	SML-Z14
