LAPIS Semiconductor
| Part Number | RF4C050APTR | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 20V 10A 8HUML | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 244380 pcs | Data sheet | 1.RF4C050APTR.pdf2.RF4C050APTR.pdf |
| Vgs(th) (Max) @ Id | 1V @ 1mA | Vgs (Max) | -8V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | HUML2020L8 |
| Series | - | Rds On (Max) @ Id, Vgs | 26 mOhm @ 5A, 4.5V |
| Power Dissipation (Max) | 2W (Ta) | Packaging | Tape & Reel (TR) |

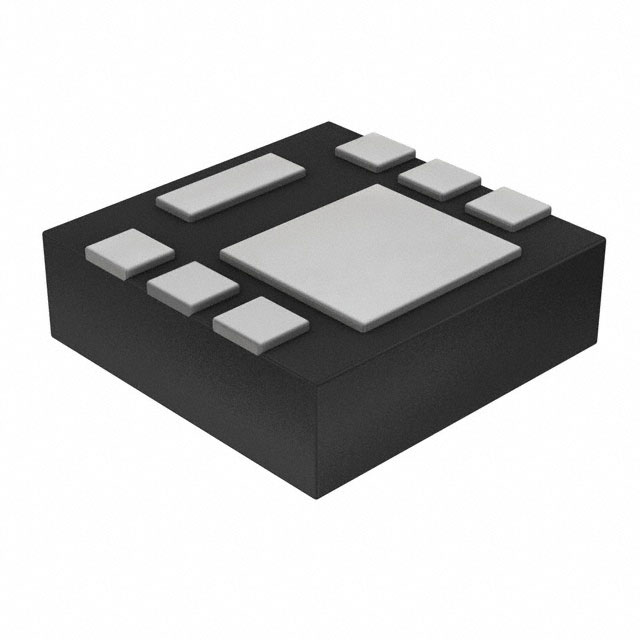

| Package / Case | 8-PowerUDFN | Other Names | Q7763030AZ RF4C050AP RF4C050AP-ND T2198597 |
| Operating Temperature | 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 40 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5500pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 55nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 10A (Ta) 2W (Ta) Surface Mount HUML2020L8 |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
