LAPIS Semiconductor

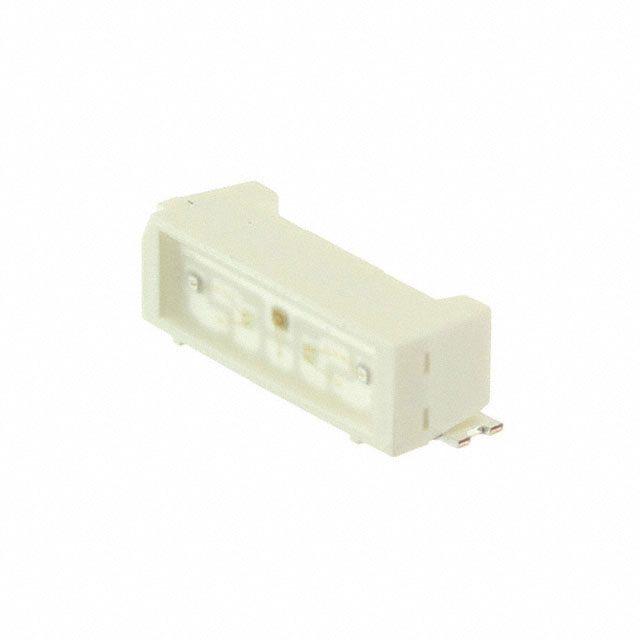

| Part Number | MSL0101RGBU1 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | LED RGB DIFFUSED 2709 SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64487 pcs | Data sheet | MSL0101RGBU1.pdf |
| Wavelength - Peak | - | Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.2V Blue | Viewing Angle | - |
| Supplier Device Package | 2709 (6922 Metric) | Size / Dimension | 6.90mm L x 2.20mm W |
| Series | MSL0101 | Packaging | Tape & Reel (TR) |
| Package / Case | 7-SMD, Flat Lead | Other Names | 846-1189-2 MSL0101RGBU1-ND MSL0101RGBU11Y MSL0101RGBU12Y MSL0101RGBU13Y MSL0101RGBU15Y MSL0101RGBU16Y MSL0101RGBU17Y MSL0101RGBU18Y |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Millicandela Rating | 700mcd Red, 1200mcd Green, 400mcd Blue | Lens Transparency | Diffused |
| Lens Style/Size | Rectangle with Flat Top, 5.40mm x 1.60mm | Lens Color | White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.15mm |
| Features | - | Detailed Description | Red, Green, Blue (RGB) 624nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.3V Green, 3.2V Blue 7-SMD, Flat Lead |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue | Configuration | Common Cathode |
| Color | Red, Green, Blue (RGB) | Base Part Number | MSL0101 |
