BSM080D12P2C008

LAPIS Semiconductor

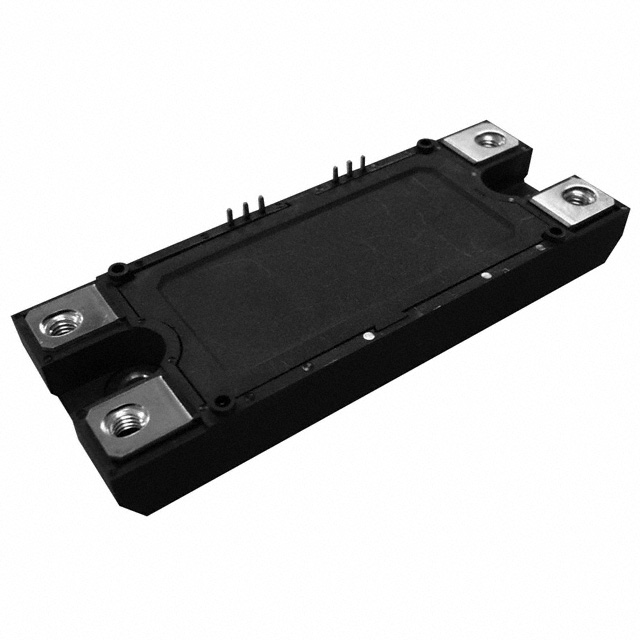

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSM080D12P2C008
Manufacturer/Brand:	LAPIS Semiconductor
Product description	SIC POWER MODULE-1200V-80A
Datasheets:	1.BSM080D12P2C008.pdf 2.BSM080D12P2C008.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	309 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 309 pcs

Reference Price (In US Dollars)

1 pcs: $110.656

10 pcs: $106.841

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$110.656

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSM080D12P2C008

Part Number	BSM080D12P2C008	Manufacturer	LAPIS Semiconductor
Description	SIC POWER MODULE-1200V-80A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	309 pcs	Data sheet	1.BSM080D12P2C008.pdf 2.BSM080D12P2C008.pdf
Vgs(th) (Max) @ Id	4V @ 13.2mA	Supplier Device Package	Module
Series	-	Rds On (Max) @ Id, Vgs	-
Power - Max	600W	Packaging	Tray
Package / Case	Module	Operating Temperature	175°C (TJ)
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	32 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	-
FET Type	2 N-Channel (Dual)	FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)	Detailed Description	Mosfet Array 2 N-Channel (Dual) 1200V (1.2kV) 80A (Tc) 600W Chassis Mount Module
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
