BD9611MUV-RE2

LAPIS Semiconductor

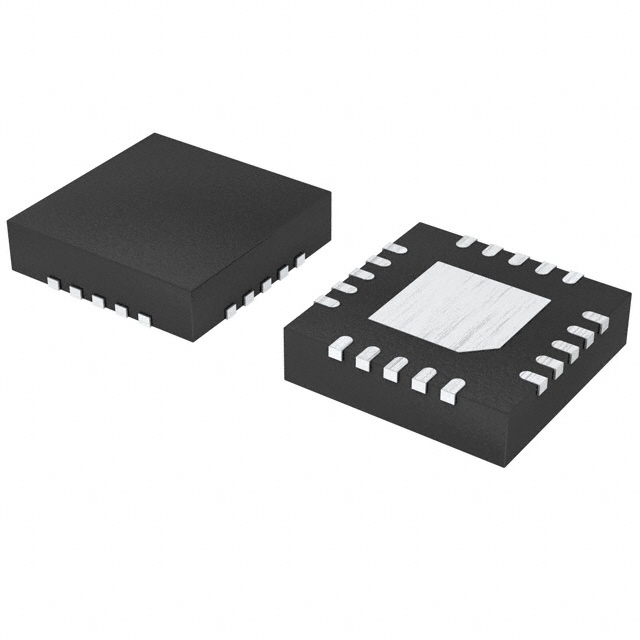

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD9611MUV-RE2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	IC REG CTRLR BUCK 20VQFN
Datasheets:	BD9611MUV-RE2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81915 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 81915 pcs

Reference Price (In US Dollars)

1 pcs: $0.793

10 pcs: $0.715

25 pcs: $0.638

100 pcs: $0.574

250 pcs: $0.51

500 pcs: $0.447

1000 pcs: $0.37

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.793

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD9611MUV-RE2

Part Number	BD9611MUV-RE2	Manufacturer	LAPIS Semiconductor
Description	IC REG CTRLR BUCK 20VQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81915 pcs	Data sheet	BD9611MUV-RE2.pdf
Voltage - Supply (Vcc/Vdd)	10 V ~ 56 V	Topology	Buck
Synchronous Rectifier	Yes	Supplier Device Package	VQFN020V4040
Series	-	Serial Interfaces	-
Packaging	Original-Reel®	Package / Case	20-VFQFN Exposed Pad
Output Type	Transistor Driver	Output Phases	1
Output Configuration	Positive	Other Names	BD9611MUV-RE2DKR
Operating Temperature	-40°C ~ 105°C (TA)	Number of Outputs	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Down	Frequency - Switching	50kHz ~ 500kHz
Duty Cycle (Max)	-	Detailed Description	Buck Regulator Positive Output Step-Down DC-DC Controller IC VQFN020V4040
Control Features	Current Limit, Enable, Frequency Control, Soft Start	Clock Sync	Yes
Base Part Number	BD9611
