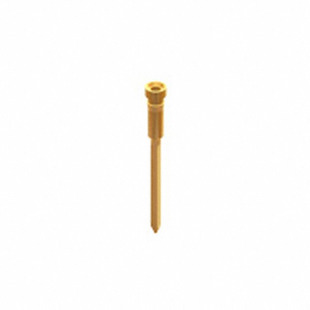

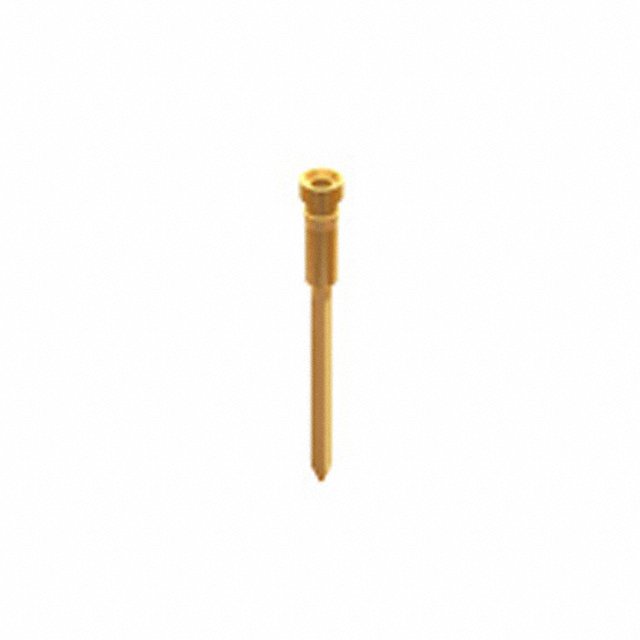

Keystone Electronics Corp.
| Part Number | 3506 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.025 PRESSFIT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 232666 pcs | Data sheet | 1.3506.pdf2.3506.pdf |
| Termination | Press-Fit | Tail Type | Standard Tail |
| Tail Diameter | 0.025" (0.64mm) Square | Socket Depth | 0.160" (4.06mm) |
| Series | - | Pin Hole Diameter | - |
| Packaging | Bulk | Other Names | 3506K 3506K-ND 36-3506 |
| Operating Temperature | - | Mounting Hole Diameter | 0.055" (1.40mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.703" (17.86mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Force | - | Flange Diameter | 0.072" (1.83mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin-Lead | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
