Keystone Electronics Corp.

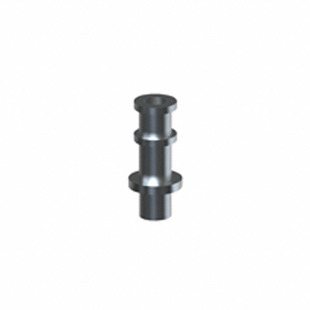

| Part Number | 1509-4 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=7.92MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 220040 pcs | Data sheet | 1.1509-4.pdf2.1509-4.pdf |
| Termination | Staking Flare | Terminal Type | Single End, Hollow |
| Staking Side OD | 0.112" (2.84mm) | Staking Side ID | - |
| Series | - | Other Names | 1509-4K 1509-4K-ND 36-1509-4 |
| Number of Turrets | Double | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.116" (2.95mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.483" (12.27mm) | Length - Below Flange | 0.171" (4.34mm) |
| Length - Above Board | 0.312" (7.92mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.187" (4.75mm) | Diameter - Turret Head | 0.150" (3.81mm) |
| Detailed Description | Terminal Turret Connector Single End, Hollow 0.312" (7.92mm) Tin | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | 0.125" (3.18mm) |
