WP3-S080VA1-R500

JAE Electronics, Inc.

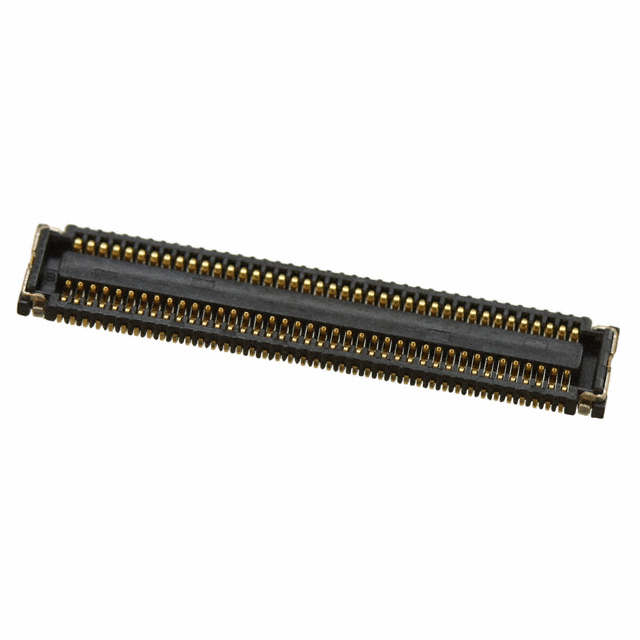

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WP3-S080VA1-R500
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 0.4MM 80POS DUAL SMD
Datasheets:	1.WP3-S080VA1-R500.pdf 2.WP3-S080VA1-R500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46317 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46317 pcs

Reference Price (In US Dollars)

500 pcs: $1.02

1000 pcs: $0.87

1500 pcs: $0.84

2500 pcs: $0.81

5000 pcs: $0.78

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.02

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WP3-S080VA1-R500

Part Number	WP3-S080VA1-R500	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 0.4MM 80POS DUAL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46317 pcs	Data sheet	1.WP3-S080VA1-R500.pdf 2.WP3-S080VA1-R500.pdf
Series	WP3	Pitch	0.016" (0.40mm)
Packaging	Tape & Reel (TR)	Other Names	670-2655-2 C2777-S080VA1-R500 C2777-WP3-S080VA1-R500 WP3S080VA1R500
Number of Rows	2	Number of Positions	80
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	1mm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.039" (1.00mm)	Features	Solder Retention
Detailed Description	80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold	Contact Finish Thickness	3.90µin (0.099µm)
Contact Finish	Gold	Connector Type	Receptacle, Center Strip Contacts
