MX34028UF2

JAE Electronics, Inc.

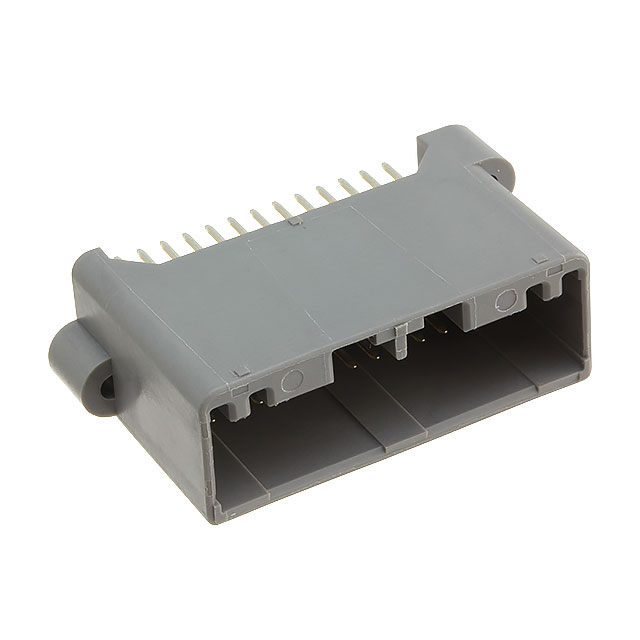

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX34028UF2
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN SOCKET HOUSING 2.2MM 28POS
Datasheets:	1.MX34028UF2.pdf 2.MX34028UF2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69050 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69050 pcs

Reference Price (In US Dollars)

1 pcs: $0.953

10 pcs: $0.865

25 pcs: $0.812

50 pcs: $0.777

100 pcs: $0.742

250 pcs: $0.671

500 pcs: $0.618

1000 pcs: $0.53

2500 pcs: $0.494

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.953

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX34028UF2

Part Number	MX34028UF2	Manufacturer	JAE Electronics, Inc.
Description	CONN SOCKET HOUSING 2.2MM 28POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69050 pcs	Data sheet	1.MX34028UF2.pdf 2.MX34028UF2.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX34	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.087" (2.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	670-2909 MX34028UF2-ND
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	28
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.925" (23.50mm)
Insulation Color	Gray	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 28 position 0.087" (2.20mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.303" (7.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
