JAE Electronics, Inc.

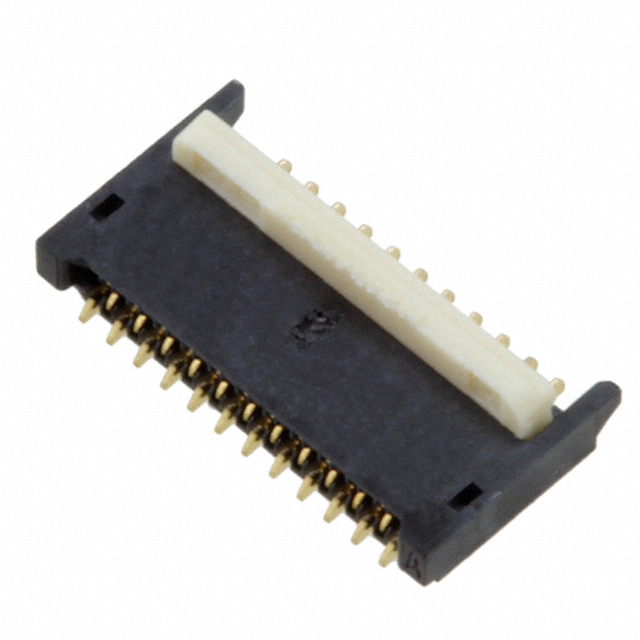

| Part Number | FR02C023JA1-R5000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC 23POS 0.20MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88473 pcs | Data sheet | 1.FR02C023JA1-R5000.pdf2.FR02C023JA1-R5000.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FR02 | Pitch | 0.008" (0.20mm) |
| Packaging | Cut Tape (CT) | Other Names | 670-2740-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 23 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Plastic |
| Housing Color | Black | Height Above Board | 0.032" (0.81mm) |
| Flat Flex Type | FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 23 Position FPC Connector Contacts, Top and Bottom 0.008" (0.20mm) Surface Mount, Right Angle |
| Current Rating | 0.25A per Contact | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tabbed or Tapered |
| Actuator Material | Plastic | Actuator Color | Natural |
