ES3B002WF1R1000

JAE Electronics, Inc.

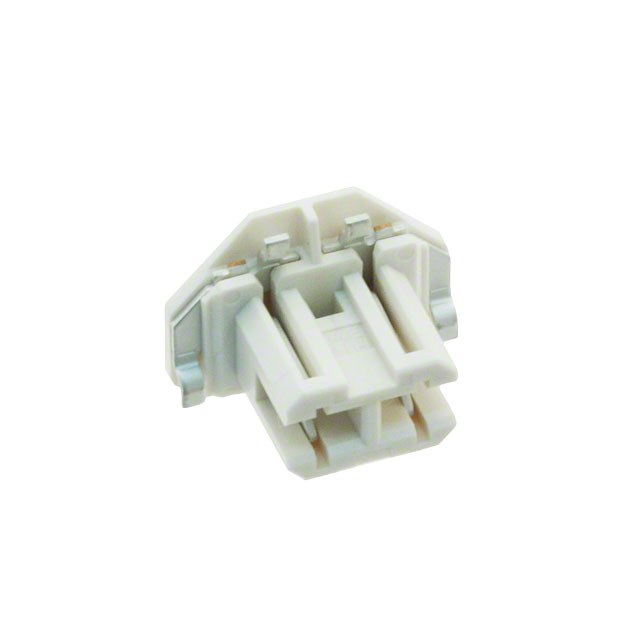

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ES3B002WF1R1000
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN SSL RCPT 2POS 3.6MM SOLDER
Datasheets:	1.ES3B002WF1R1000.pdf 2.ES3B002WF1R1000.pdf 3.ES3B002WF1R1000.pdf 4.ES3B002WF1R1000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	105736 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 105736 pcs

Reference Price (In US Dollars)

1000 pcs: $0.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.20

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ES3B002WF1R1000

Part Number	ES3B002WF1R1000	Manufacturer	JAE Electronics, Inc.
Description	CONN SSL RCPT 2POS 3.6MM SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105736 pcs	Data sheet	1.ES3B002WF1R1000.pdf 2.ES3B002WF1R1000.pdf 3.ES3B002WF1R1000.pdf 4.ES3B002WF1R1000.pdf
Wire Gauge	-	Voltage Rating	200V
Termination	Solder	Style	Board to Board - Card Edge
Series	ES3	Pitch	0.142" (3.60mm)
Packaging	Tape & Reel (TR)	Other Names	670-2575-2
Operating Temperature	-40°C ~ 105°C	Number of Positions	2
Mounting Type	Surface Mount, Bottom Entry, Through Board	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Housing Material	Liquid Crystal Polymer (LCP)	Housing Color	White
Features	-	Fastening Type	-
Detailed Description	SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.142" (3.60mm) Solder	Current Rating	1A
Contact Material	Copper Alloy	Contact Finish	Tin
Connector Type	Receptacle
