TLP621-2X

Isocom Components

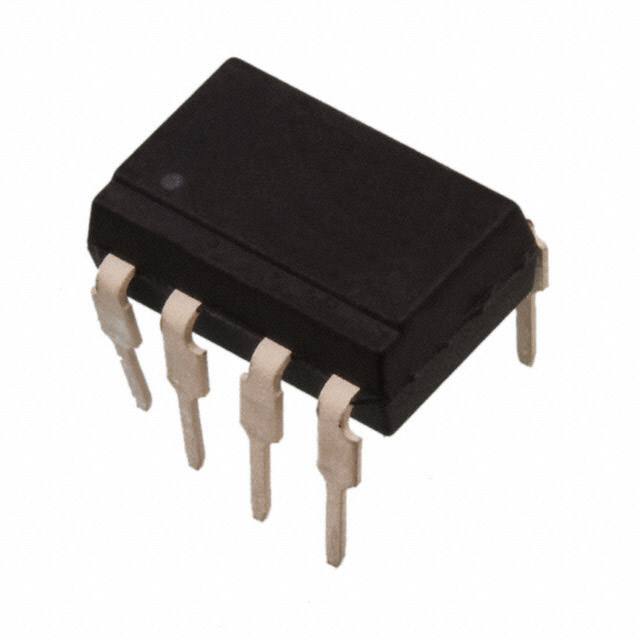

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP621-2X
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheets:	TLP621-2X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	240530 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 240530 pcs

Reference Price (In US Dollars)

1 pcs: $0.309

10 pcs: $0.24

25 pcs: $0.199

100 pcs: $0.172

250 pcs: $0.151

800 pcs: $0.114

1600 pcs: $0.103

3200 pcs: $0.096

5600 pcs: $0.093

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.309

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP621-2X

Part Number	TLP621-2X	Manufacturer	Isocom Components
Description	OPTOISO 5.3KV 2CH TRANS 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	240530 pcs	Data sheet	TLP621-2X.pdf
Voltage - Output (Max)	55V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	3µs, 3µs	Supplier Device Package	-
Series	-	Rise / Fall Time (Typ)	2µs, 3µs
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Transistor	Operating Temperature	-55°C ~ 100°C
Number of Channels	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	2 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5300Vrms 2 Channel	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	-
Current - DC Forward (If) (Max)	50mA
