IS314W

Isocom Components

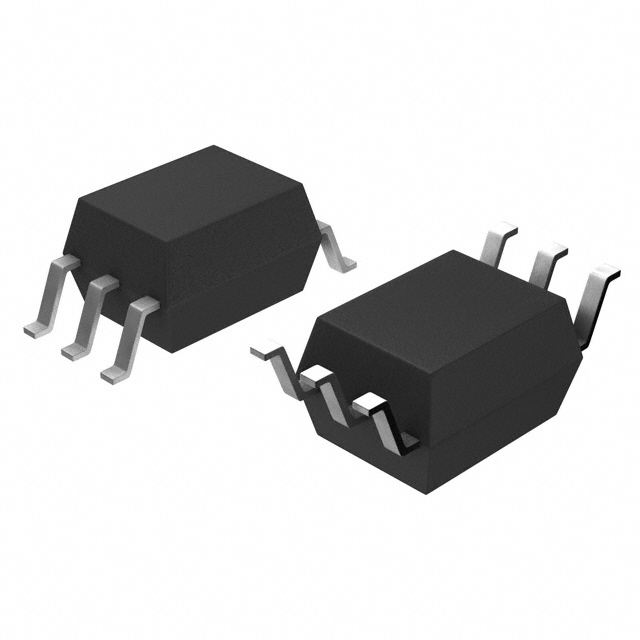

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IS314W
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5KV 1CH GATE DRIVER 6SO
Datasheets:	IS314W.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	74496 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 74496 pcs

Reference Price (In US Dollars)

1 pcs: $0.641

10 pcs: $0.521

25 pcs: $0.401

100 pcs: $0.361

250 pcs: $0.321

500 pcs: $0.273

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.641

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IS314W

Part Number	IS314W	Manufacturer	Isocom Components
Description	OPTOISO 5KV 1CH GATE DRIVER 6SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74496 pcs	Data sheet	IS314W.pdf
Voltage - Supply	10 V ~ 30 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.37V	Technology	Optical Coupling
Supplier Device Package	6-SO Stretched	Series	-
Rise / Fall Time (Typ)	35ns, 35ns	Pulse Width Distortion (Max)	70ns
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns	Packaging	Original-Reel®
Package / Case	6-SOIC (0.268", 6.80mm Width)	Other Names	IS314WDKR
Operating Temperature	-40°C ~ 105°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	1A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO Stretched	Current - Peak Output	1A
Current - Output High, Low	800mA, 800mA	Current - DC Forward (If) (Max)	25mA
Common Mode Transient Immunity (Min)	20kV/µs	Approvals	-
