BSB014N04LX3GXUMA1

International Rectifier (Infineon Technologies)

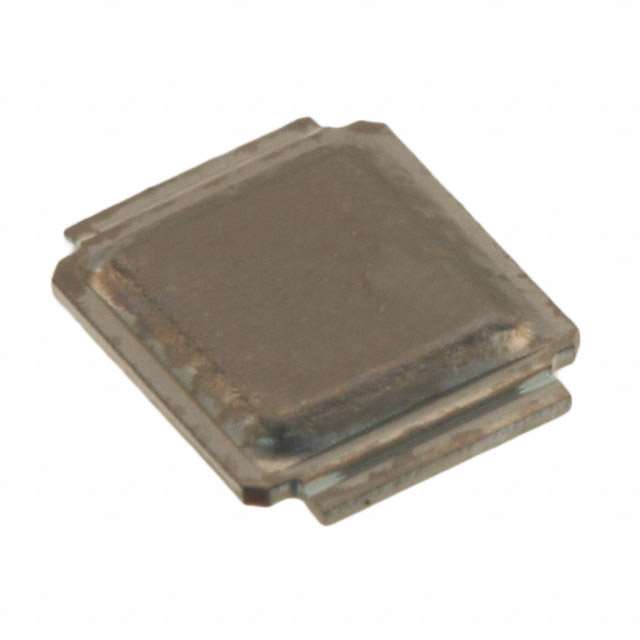

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BSB014N04LX3GXUMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 40V 180A 2WDSON
Datasheets:	BSB014N04LX3GXUMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	100715 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 100715 pcs

Reference Price (In US Dollars)

5000 pcs: $0.371

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.371

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BSB014N04LX3GXUMA1

Part Number	BSB014N04LX3GXUMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 40V 180A 2WDSON	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	100715 pcs	Data sheet	BSB014N04LX3GXUMA1.pdf
Vgs(th) (Max) @ Id	2V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	MG-WDSON-2, CanPAK M™
Series	OptiMOS™	Rds On (Max) @ Id, Vgs	1.4 mOhm @ 30A, 10V
Power Dissipation (Max)	2.8W (Ta), 89W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	3-WDSON	Other Names	BSB014N04LX3 G BSB014N04LX3 G-ND BSB014N04LX3 GTR-ND BSB014N04LX3GXUMA1TR SP000597850
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	16900pF @ 20V	Gate Charge (Qg) (Max) @ Vgs	196nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 36A (Ta), 180A (Tc) 2.8W (Ta), 89W (Tc) Surface Mount MG-WDSON-2, CanPAK M™	Current - Continuous Drain (Id) @ 25°C	36A (Ta), 180A (Tc)
