Hirose

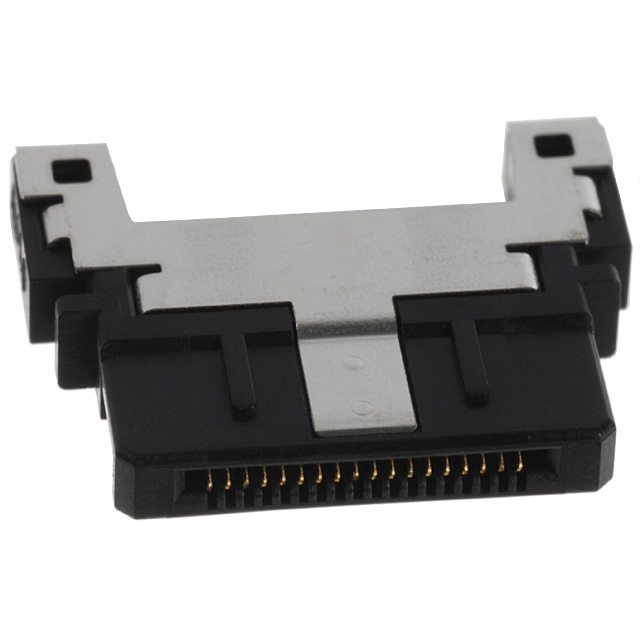

| Part Number | ST60X-18S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG 18POS R/A CRADLE SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4230 pcs | Data sheet | ST60X-18S.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | - |
| Series | ST | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | *ST60X-18S H11465CT |
| Operating Temperature | -30°C ~ 80°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 18 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.116" (2.95mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Mounting Flange, Shielded |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 18 position 0.020" (0.50mm) |
| Current Rating | 0.5A | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Cradle | Applications | - |
