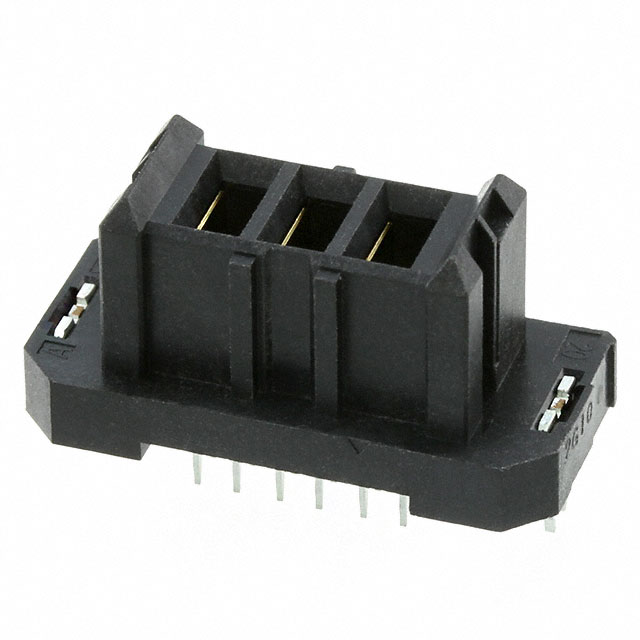

Hirose
| Part Number | FX30A-3P-3.81DSA20 | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 3POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29338 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 4 Wall |
| Series | FunctionMax™ FX30A | Row Spacing - Mating | - |
| Pitch - Mating | 0.150" (3.81mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 570-2101-0-00 FX30A-3P-3.81DSA20-ND H123450 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 18mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.433" (11.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 3 position 0.150" (3.81mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
