DF3-15P-2DSA(01)

Hirose

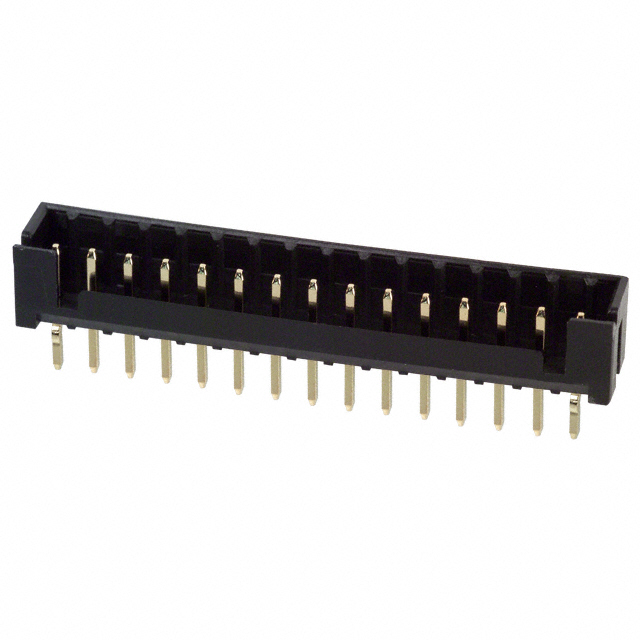

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF3-15P-2DSA(01)
Manufacturer/Brand:	Hirose
Product description	CONN HEADER 15POS 2MM VERT GOLD
Datasheets:	1.DF3-15P-2DSA(01).pdf 2.DF3-15P-2DSA(01).pdf 3.DF3-15P-2DSA(01).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	84233 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 84233 pcs

Reference Price (In US Dollars)

100 pcs: $0.388

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.388

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF3-15P-2DSA(01)

Part Number	DF3-15P-2DSA(01)	Manufacturer	Hirose
Description	CONN HEADER 15POS 2MM VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84233 pcs	Data sheet	1.DF3-15P-2DSA(01).pdf 2.DF3-15P-2DSA(01).pdf 3.DF3-15P-2DSA(01).pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	DF3	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.299" (7.60mm)	Other Names	*DF3-15P-2DSA(01) DF315P2DSA01 H3934
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	15
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.197" (5.00mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 15 position 0.079" (2.00mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.114" (2.90mm)
Contact Length - Mating	0.122" (3.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
