Hirose

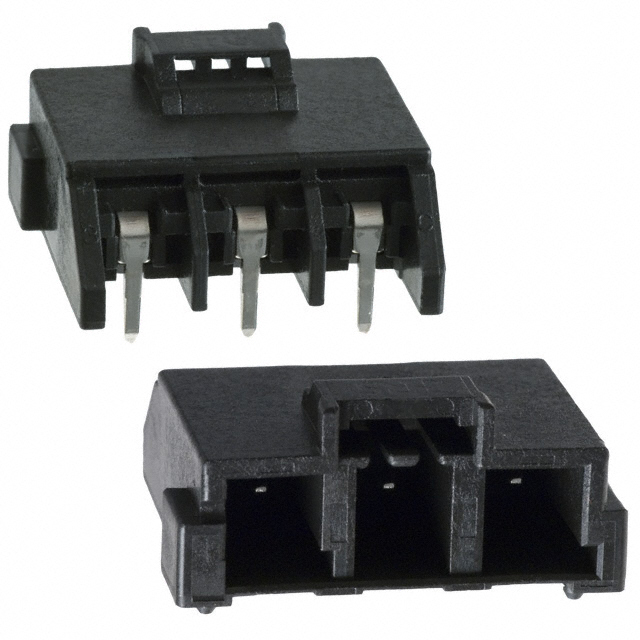

| Part Number | DF22R-3P-7.92DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 7.92MM R/A TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4013 pcs | Data sheet | DF22R-3P-7.92DS.pdf |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | EnerBee™ DF22 | Row Spacing - Mating | - |
| Pitch - Mating | 0.312" (7.92mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | *DF22R-3P-7.92DS H1616 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.480" (12.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.312" (7.92mm) |
| Current Rating | 25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.146" (3.70mm) | Contact Length - Mating | 0.354" (9.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
