109T

Hammond Manufacturing

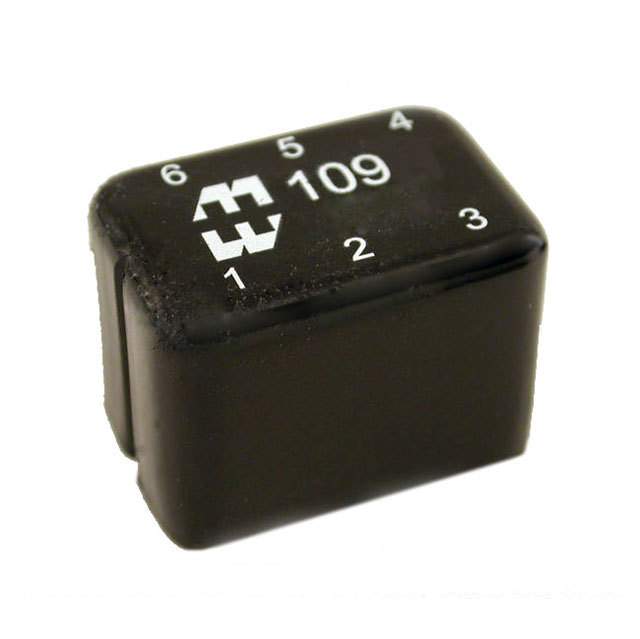

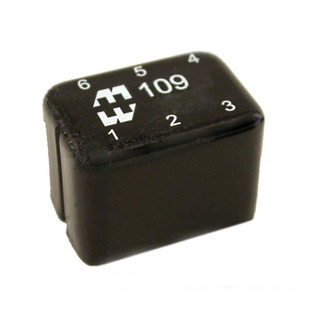

Image may be representation. See specifications for product details.

Product Overview

Part Number:	109T
Manufacturer/Brand:	Hammond Manufacturing
Product description	TRANSFORMER AUDIO 10KCT/10KCT
Datasheets:	109T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5572 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5572 pcs

Reference Price (In US Dollars)

1 pcs: $9.641

10 pcs: $8.505

25 pcs: $8.222

50 pcs: $7.371

100 pcs: $7.088

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.641

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 109T

Part Number	109T	Manufacturer	Hammond Manufacturing
Description	TRANSFORMER AUDIO 10KCT/10KCT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5572 pcs	Data sheet	109T.pdf
Weight	-	Voltage - Isolation	-
Turns Ratio - Primary:Secondary	-	Transformer Type	Miniature Epoxy Potted
Termination Style	PC Pin	Size / Dimension	1.315" L x 0.930" W (33.40mm x 23.62mm)
Series	109	Return Loss	-
Power Level	2W	Packaging	Bulk
Other Names	109T-ND HM2398	Operating Temperature	-
Mounting Type	Through Hole	Manufacturer Standard Lead Time	4 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Impedance - Secondary (Ohms)	10kCT	Impedance - Primary (Ohms)	10kCT
Height - Seated (Max)	0.920" (23.37mm)	Frequency Response	±1.5dB
Frequency Range	300Hz ~ 50kHz	DC Resistance (DCR) - Secondary	1 kOhm
DC Resistance (DCR) - Primary	700 Ohm	Approvals	-
