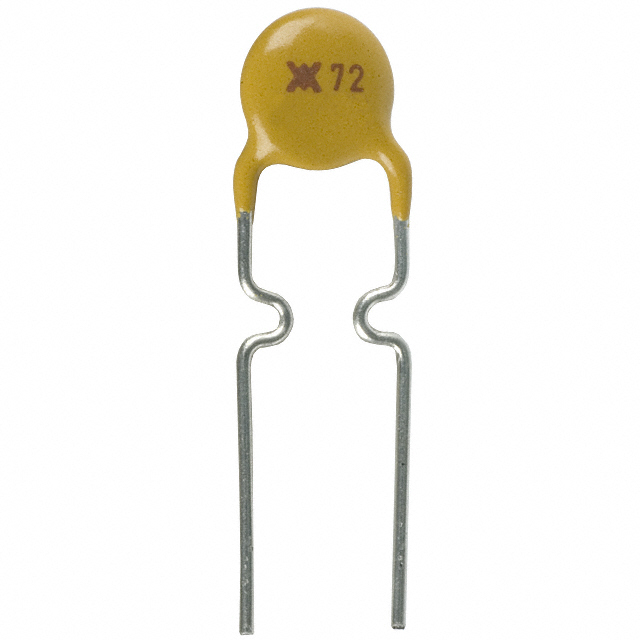

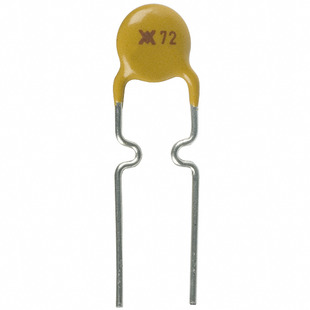

Hamlin / Littelfuse
| Part Number | RXEF030-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 72V 300MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121580 pcs | Data sheet | 1.RXEF030-2.pdf2.RXEF030-2.pdf |
| Voltage - Max | 72V | Type | Polymeric |
| Time to Trip | 3s | Thickness (Max) | - |
| Size / Dimension | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | Series | PolySwitch® |
| Resistance - Post Trip (R1) (Max) | 2.1 Ohms | Resistance - Initial (Ri) (Min) | 880 mOhms |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | Radial, Disc | Other Names | C82410-000CT-ND RXEF030-2CT RXEF030CT RXEF030CT-ND |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Lead Spacing | 0.200" (5.08mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.500" (12.70mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 72V 300mA Ih Through Hole Radial, Disc | Current - Trip (It) | 600mA |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 300mA |
| Approvals | CQC, CSA, TUV, UL |
