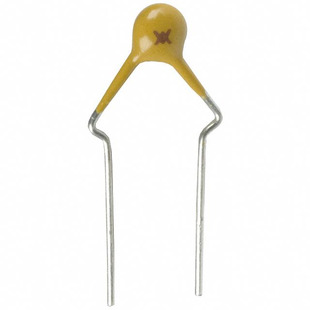

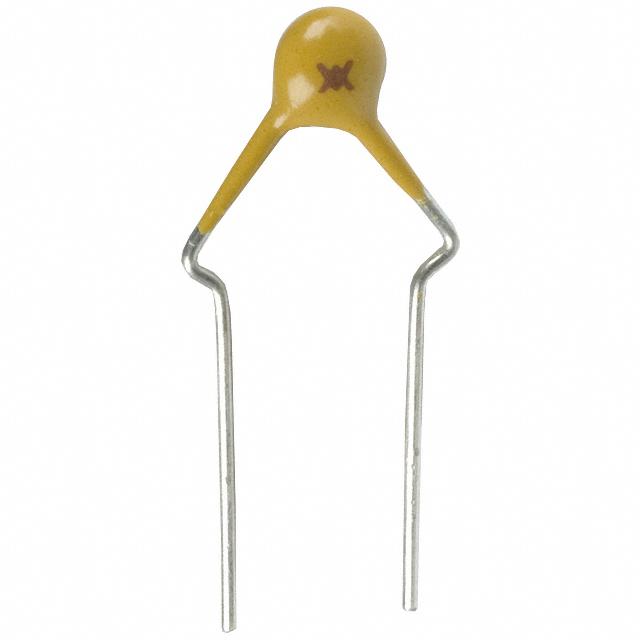

Hamlin / Littelfuse
| Part Number | RXEF005-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 60V 50MA RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 289074 pcs | Data sheet | 1.RXEF005-2.pdf2.RXEF005-2.pdf |
| Voltage - Max | 60V | Type | Polymeric |
| Time to Trip | 5s | Thickness (Max) | - |
| Size / Dimension | 0.315" Dia x 0.118" T (8.00mm x 3.00mm) | Series | PolySwitch®, RXEF |
| Resistance - Post Trip (R1) (Max) | 20 Ohms | Resistance - Initial (Ri) (Min) | 7.3 Ohms |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | Radial, Disc | Other Names | RXEF005-2CT RXEF005CT RXEF005CT-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Spacing | 0.199" (5.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.327" (8.30mm) | Detailed Description | Polymeric PTC Resettable Fuse 60V 50mA Ih Through Hole Radial, Disc |
| Current - Trip (It) | 100mA | Current - Max | 40A |
| Current - Hold (Ih) (Max) | 50mA | Approvals | CQC, CSA, TUV, UL |
