SI8261ABD-C-IM

Energy Micro (Silicon Labs)Energy Micro (Silicon Labs)

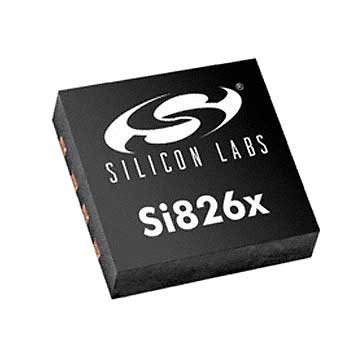

SI8261ABD-C-IM Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SI8261ABD-C-IM
Manufacturer/Brand: Energy Micro (Silicon Labs)
Product description DGTL ISO 5KV 1CH GATE DRVR 8LGA
Datasheets: SI8261ABD-C-IM.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4688 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4688 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SI8261ABD-C-IM

Part Number SI8261ABD-C-IM Manufacturer Energy Micro (Silicon Labs)
Description DGTL ISO 5KV 1CH GATE DRVR 8LGA Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4688 pcs Data sheet SI8261ABD-C-IM.pdf
Voltage - Supply 9.4 V ~ 30 V Voltage - Isolation 5000Vrms
Voltage - Forward (Vf) (Typ) 2.8V (Max) Technology Capacitive Coupling
Supplier Device Package 8-LGA (10x12.5) Series Automotive, AEC-Q100
Rise / Fall Time (Typ) 5.5ns, 8.5ns Pulse Width Distortion (Max) 28ns
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns Packaging Tube
Package / Case 8-VELGA Operating Temperature -40°C ~ 125°C
Number of Channels 1 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 3 (168 Hours) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Detailed Description 600mA Gate Driver Capacitive Coupling 5000Vrms 1 Channel 8-LGA (10x12.5) Current - Peak Output 600mA
Current - Output High, Low 400mA, 600mA Current - DC Forward (If) (Max) 30mA
Common Mode Transient Immunity (Min) 35kV/µs Approvals CQC, CSA, UR, VDE
