EPC2202

EPC

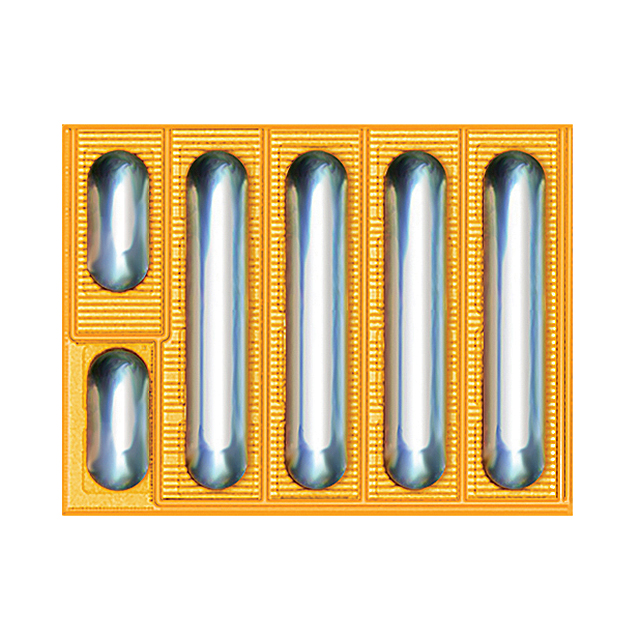

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EPC2202
Manufacturer/Brand:	EPC
Product description	GANFET N-CH 80V 18A DIE
Datasheets:	EPC2202.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51506 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51506 pcs

Reference Price (In US Dollars)

1 pcs: $1.246

10 pcs: $1.126

25 pcs: $1.005

100 pcs: $0.905

250 pcs: $0.804

500 pcs: $0.704

1000 pcs: $0.583

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.246

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EPC2202

Part Number	EPC2202	Manufacturer	EPC
Description	GANFET N-CH 80V 18A DIE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51506 pcs	Data sheet	EPC2202.pdf
Vgs(th) (Max) @ Id	2.5V @ 3mA	Vgs (Max)	+5.75V, -4V
Technology	GaNFET (Gallium Nitride)	Supplier Device Package	Die Outline (6-Solder Bar)
Series	Automotive, AEC-Q101, eGaN®	Rds On (Max) @ Id, Vgs	17 mOhm @ 11A, 5V
Power Dissipation (Max)	-	Packaging	Cut Tape (CT)
Package / Case	Die	Other Names	917-1199-1
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	415pF @ 50V
Gate Charge (Qg) (Max) @ Vgs	4nC @ 5V	FET Type	N-Channel
FET Feature	-	Drive Voltage (Max Rds On, Min Rds On)	5V
Drain to Source Voltage (Vdss)	80V	Detailed Description	N-Channel 80V 18A Surface Mount Die Outline (6-Solder Bar)
Current - Continuous Drain (Id) @ 25°C	18A
