EPC
| Part Number | EPC2040ENGRT | Manufacturer | EPC |
|---|---|---|---|

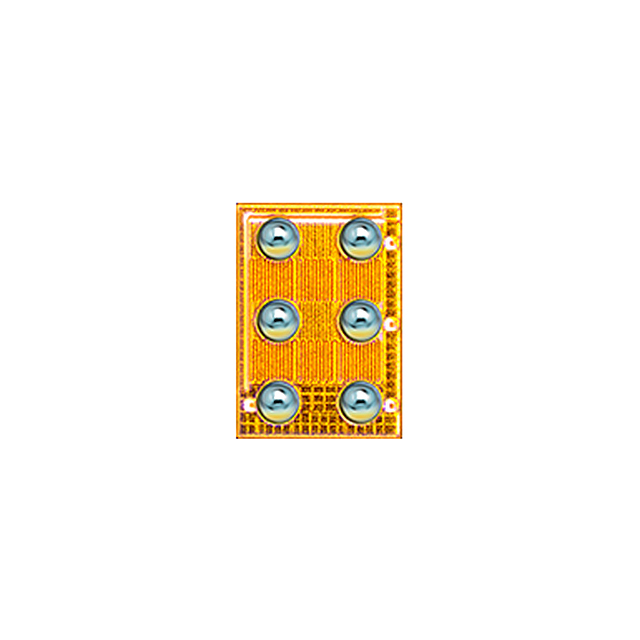

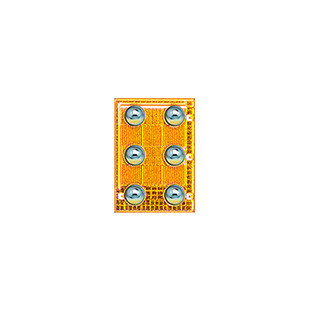

| Description | TRANS GAN 15V BUMPED DIE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87062 pcs | Data sheet | EPC2040ENGRT.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | Vgs (Max) | +6V, -4V |
| Technology | GaNFET (Gallium Nitride) | Supplier Device Package | Die |
| Series | eGaN® | Rds On (Max) @ Id, Vgs | 28 mOhm @ 1.5A, 5V |
| Power Dissipation (Max) | - | Packaging | Cut Tape (CT) |
| Package / Case | Die | Other Names | 917-1139-1 917-1139-1-ND 917-EPC2040ENGRCT |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 100pF @ 6V | Gate Charge (Qg) (Max) @ Vgs | 0.93nC @ 5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | Drain to Source Voltage (Vdss) | 15V |
| Detailed Description | N-Channel 15V 3.4A (Ta) Surface Mount Die | Current - Continuous Drain (Id) @ 25°C | 3.4A (Ta) |
