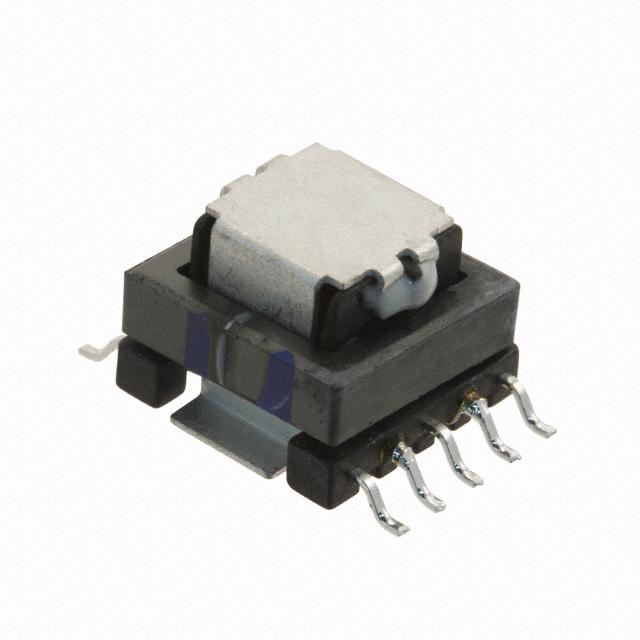

B82801C1265A150

EPCOS

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B82801C1265A150
Manufacturer/Brand:	EPCOS
Product description	CURR SENSE XFMR 1:150 SMD
Datasheets:	B82801C1265A150.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46889 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46889 pcs

Reference Price (In US Dollars)

200 pcs: $0.821

400 pcs: $0.797

600 pcs: $0.773

1000 pcs: $0.749

5000 pcs: $0.688

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.821

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B82801C1265A150

Part Number	B82801C1265A150	Manufacturer	EPCOS
Description	CURR SENSE XFMR 1:150 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46889 pcs	Data sheet	B82801C1265A150.pdf
Weight	0.011 lb (4.99g)	Type	Invasive
Turns Ratio - Primary:Secondary	1:150	Termination Style	Gull Wing
Size / Dimension	0.560" L x 0.530" W (14.22mm x 13.46mm)	Series	B82801C
Ratings	-	Packaging	Tape & Reel (TR)
Other Names	495-4443-2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	12.6mH
Height - Seated (Max)	0.394" (10.00mm)	Frequency Range	50kHz ~ 500kHz
Energy Time (E.T.)	-	Detailed Description	1:150 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 2.2 Ohm Secondary 12.6mH Surface Mount
DC Resistance (DCR)	0.28 mOhm Primary, 2.2 Ohm Secondary	Current Ratio	-
