EPCOS

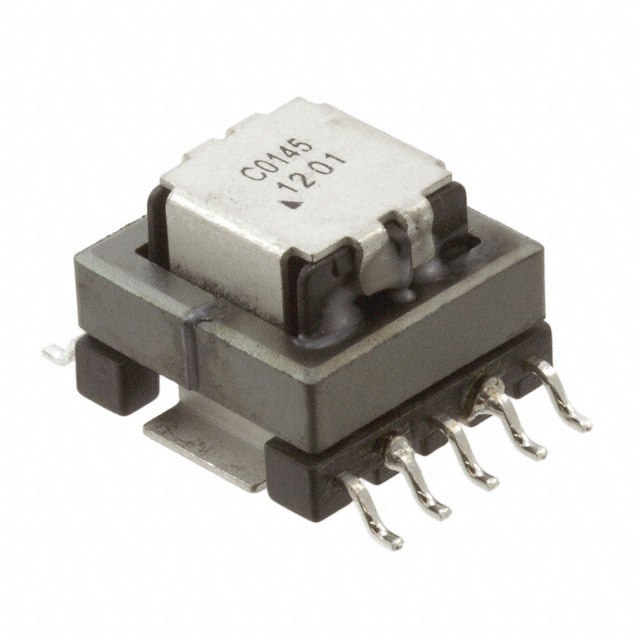

| Part Number | B82801C0145A050 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:50 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56131 pcs | Data sheet | B82801C0145A050.pdf |
| Weight | 0.011 lb (4.99g) | Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:50 | Termination Style | Gull Wing |
| Size / Dimension | 0.560" L x 0.530" W (14.22mm x 13.46mm) | Series | B82801C |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Other Names | 495-4441-2 B82801C 145A 50 B82801C145A50 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 1.4mH |
| Height - Seated (Max) | 0.394" (10.00mm) | Frequency Range | 50kHz ~ 500kHz |
| Energy Time (E.T.) | - | Detailed Description | 1:50 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 400 mOhm Secondary 1.4mH Surface Mount |
| DC Resistance (DCR) | 0.28 mOhm Primary, 400 mOhm Secondary | Current Ratio | - |
