EPCOS

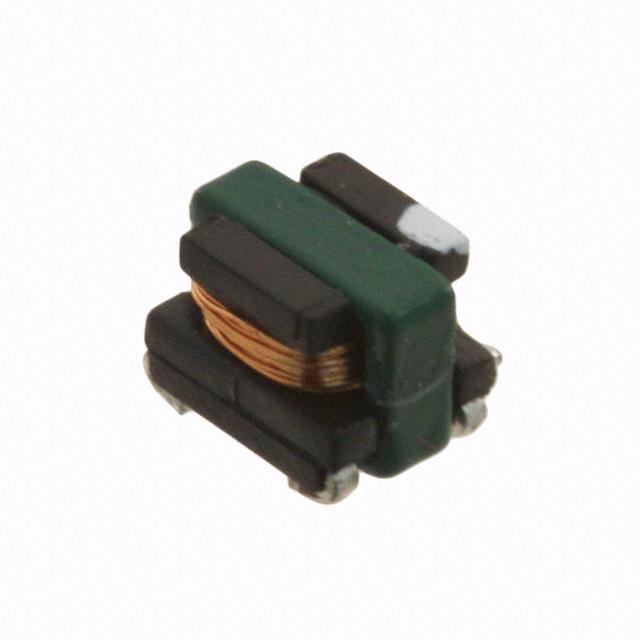

| Part Number | B82801A0743A030 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:30 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39437 pcs | Data sheet | B82801A0743A030.pdf |
| Weight | 0.006 oz (0.17g) | Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:30 | Termination Style | J Lead |
| Size / Dimension | 0.138" L x 0.185" W (3.50mm x 4.70mm) | Series | B82801A |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Other Names | 495-4036-2 B82801A 743A 30 B82801A743A30 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 74µH |
| Height - Seated (Max) | 0.138" (3.50mm) | Frequency Range | 50kHz ~ 1MHz |
| Energy Time (E.T.) | - | Detailed Description | 1:30 Current Sense Transformer 50kHz ~ 1MHz 2.5 mOhm Primary, 800 mOhm Secondary 74µH Surface Mount |
| DC Resistance (DCR) | 2.5 mOhm Primary, 800 mOhm Secondary | Current Ratio | - |
