DA14580-01UNA

Dialog Semiconductor

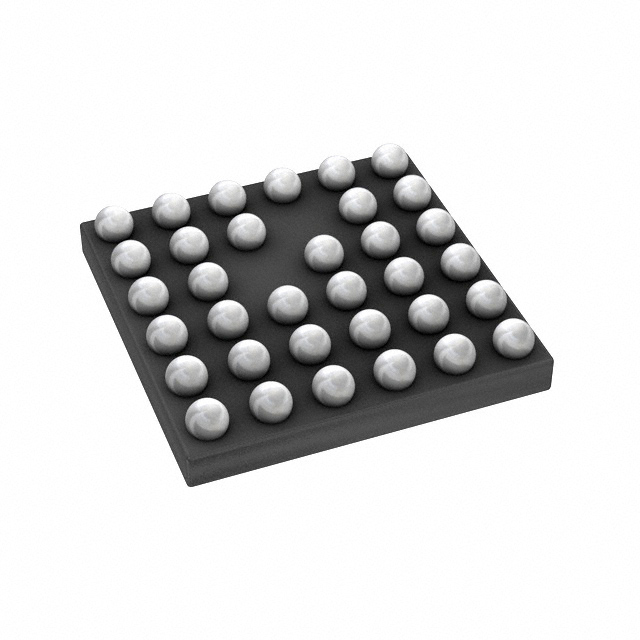

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DA14580-01UNA
Manufacturer/Brand:	Dialog Semiconductor
Product description	IC RF TXRX+MCU BLUETOOTH 34WLCSP
Datasheets:	1.DA14580-01UNA.pdf 2.DA14580-01UNA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73006 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 73006 pcs

Reference Price (In US Dollars)

5000 pcs: $0.443

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.443

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DA14580-01UNA

Part Number	DA14580-01UNA	Manufacturer	Dialog Semiconductor
Description	IC RF TXRX+MCU BLUETOOTH 34WLCSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73006 pcs	Data sheet	1.DA14580-01UNA.pdf 2.DA14580-01UNA.pdf
Voltage - Supply	2.35 V ~ 3.3 V	Type	TxRx + MCU
Series	-	Serial Interfaces	I²C, SPI, UART
Sensitivity	-93dBm	RF Family/Standard	Bluetooth
Protocol	Bluetooth v4.1	Power - Output	-1dBm
Packaging	Tape & Reel (TR)	Package / Case	34-UFBGA, WLCSP
Other Names	1564-1012-2	Operating Temperature	-40°C ~ 85°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Modulation	-
Memory Size	32kB OTP, 84kB ROM, 50kB SRAM	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	GPIO	14
Frequency	2.4GHz	Detailed Description	IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 34-UFBGA, WLCSP
Data Rate (Max)	-	Current - Transmitting	3.4mA
Current - Receiving	3.7mA
