MGDT100125LF

Dale / Vishay

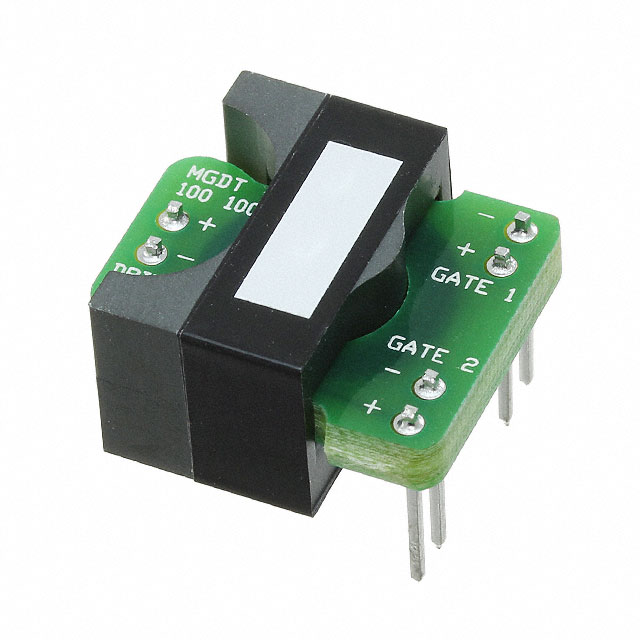

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MGDT100125LF
Manufacturer/Brand:	Dale / Vishay
Product description	PLANAR GATE-DRIVE XFMR, 1 : 1.25
Datasheets:	MGDT100125LF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11754 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11754 pcs

Reference Price (In US Dollars)

1 pcs: $4.415

10 pcs: $3.26

25 pcs: $3.009

64 pcs: $2.909

128 pcs: $2.829

256 pcs: $2.789

512 pcs: $2.758

1024 pcs: $2.708

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.415

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MGDT100125LF

Part Number	MGDT100125LF	Manufacturer	Dale / Vishay
Description	PLANAR GATE-DRIVE XFMR, 1 : 1.25	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11754 pcs	Data sheet	MGDT100125LF.pdf
Turns Ratio - Primary:Secondary	1:1.25:1.25	Transformer Type	Gate Drive
Size / Dimension	0.810" L x 0.725" W (20.57mm x 18.42mm)	Series	-
Other Names	541-4224	Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	240µH	Height - Seated (Max)	0.450" (11.43mm)
Energy Time (E.T.)	-
