SD-1131

Copal ElectronicsCopal Electronics

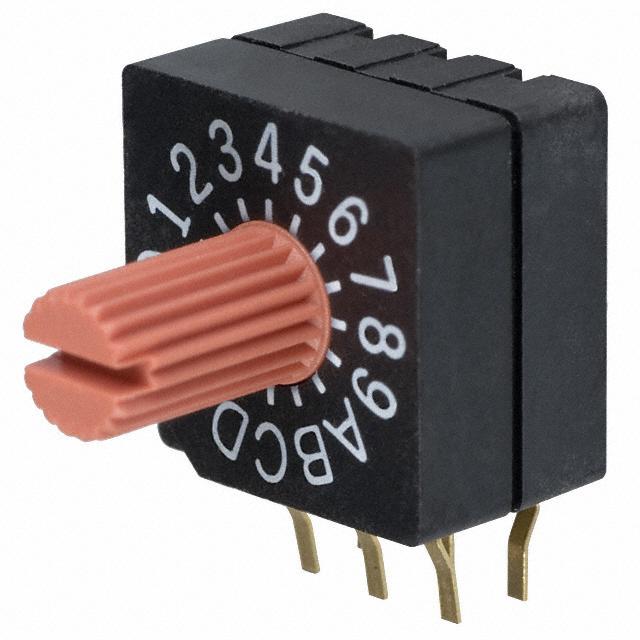

SD-1131 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SD-1131
Manufacturer/Brand: Copal Electronics
Product description SW ROTARY DIP HEX COMP 100MA 5V
Datasheets: SD-1131.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 70156 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 70156 pcs
Reference Price (In US Dollars)
100 pcs
$0.724
300 pcs
$0.685
500 pcs
$0.665
1000 pcs
$0.568
5000 pcs
$0.528
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.724

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SD-1131

Part Number SD-1131 Manufacturer Copal Electronics
Description SW ROTARY DIP HEX COMP 100MA 5V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 70156 pcs Data sheet SD-1131.pdf
Washable No Voltage Rating 5VDC
Termination Style PC Pin Series SD-1000
Pitch 0.100" (2.54mm), Full Packaging Bulk
Other Names 563-1068 Operating Temperature -40°C ~ 85°C
Number of Positions 16 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life -
Manufacturer Standard Lead Time 11 Weeks Length 0.393" (10.00mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.394" (10.00mm)
Features - Electrical Life 20,000 Steps
Detailed Description Dip Switch Hexadecimal Complement 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 5VDC Current Rating 100mA
Contact Material Copper Alloy Contact Finish Gold
Circuit Hexadecimal Complement Body Material Polyphenylene Sulfide (PPS)
Actuator Type Rotary with Shaft Actuator Level Raised
