8GD2014-Z

Copal Electronics

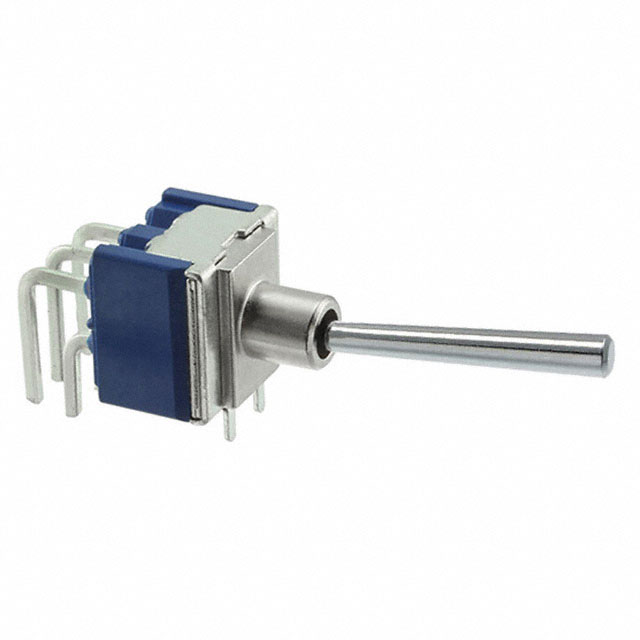

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8GD2014-Z
Manufacturer/Brand:	Copal Electronics
Product description	SWITCH TOGGLE DPDT 6A 125V
Datasheets:	8GD2014-Z.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9620 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9620 pcs

Reference Price (In US Dollars)

1 pcs: $3.603

10 pcs: $3.507

25 pcs: $3.412

50 pcs: $3.223

100 pcs: $3.128

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.603

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8GD2014-Z

Part Number	8GD2014-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9620 pcs	Data sheet	8GD2014-Z.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Function	On-On
Series	8GD	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	563-1735
Operating Temperature	-20°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Washable
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole, Right Angle
Current Rating	6A (AC), 4A (DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	-	Actuator Length	21.30mm
