IPC0092-S

Chip Quik, Inc.Chip Quik, Inc.

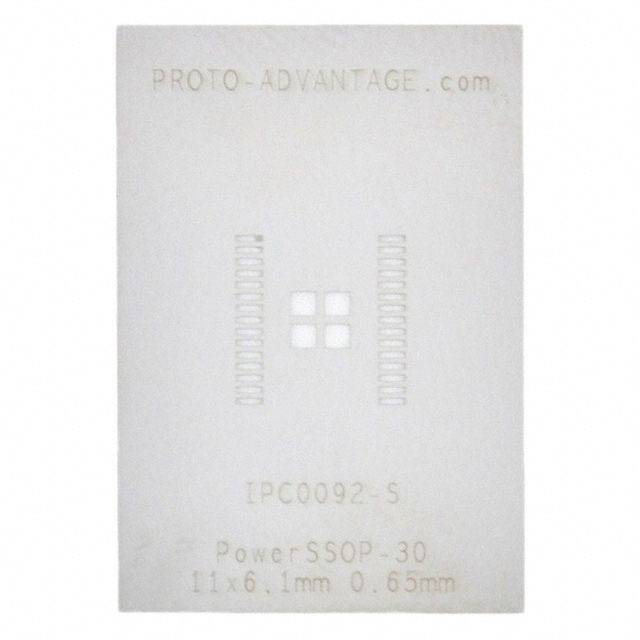

IPC0092-S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IPC0092-S
Manufacturer/Brand: Chip Quik, Inc.
Product description POWERSSOP-30 STENCIL
Datasheets: 1.IPC0092-S.pdf2.IPC0092-S.pdf3.IPC0092-S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 8955 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 8955 pcs
Reference Price (In US Dollars)
1 pcs
$4.086
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$4.086

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IPC0092-S

Part Number IPC0092-S Manufacturer Chip Quik, Inc.
Description POWERSSOP-30 STENCIL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 8955 pcs Data sheet 1.IPC0092-S.pdf2.IPC0092-S.pdf3.IPC0092-S.pdf
Type PowerSSOP Thickness 0.0040" (0.102mm)
Thermal Center Pad 0.162" L x 0.154" W (4.11mm x 3.91mm) Series Proto-Advantage
Pitch 0.026" (0.65mm) Outer Dimension 0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions 30 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Stainless Steel Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inner Dimension 0.433" L x 0.240" W (11.00mm x 6.10mm)
