ANG-11HAW1

Cherry Switches (ZF Electronics)

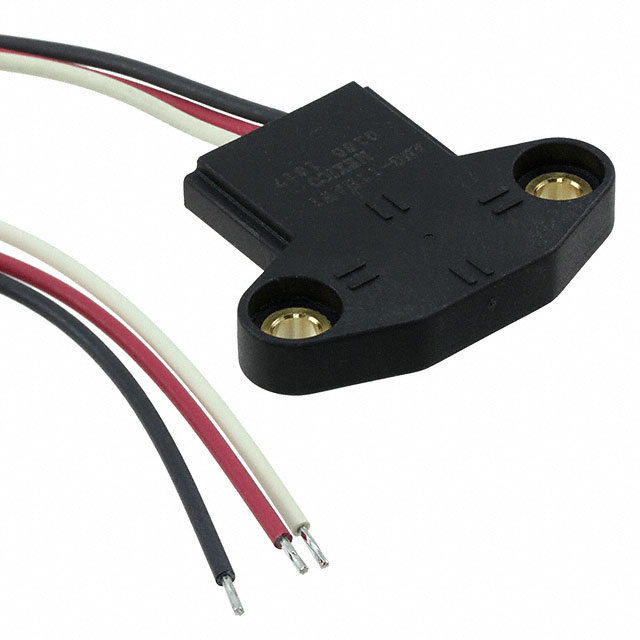

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ANG-11HAW1
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SENSOR ANGLE 360DEG WIRE LEADS
Datasheets:	ANG-11HAW1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5193 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5193 pcs

Reference Price (In US Dollars)

1 pcs: $9.213

10 pcs: $7.957

25 pcs: $7.329

50 pcs: $6.491

100 pcs: $6.282

250 pcs: $6.072

500 pcs: $5.863

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ANG-11HAW1

Part Number	ANG-11HAW1	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 360DEG WIRE LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5193 pcs	Data sheet	ANG-11HAW1.pdf
Voltage - Supply	5V	Termination Style	Wire Leads
Technology	Hall Effect	Supplier Device Package	-
Series	ANG	Rotation Angle - Electrical, Mechanical	0° ~ 360°, Continuous
Resistance Tolerance	-	Packaging	Bulk
Package / Case	Module	Output Signal	Counterclockwise Increase
Output	Analog Voltage	Other Names	CH999
Operating Temperature	-40°C ~ 140°C	Mounting Type	Chassis Mount
Manufacturer Standard Lead Time	18 Weeks	Linearity	±1%
Linear Range	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
For Measuring	Angle	Detailed Description	Hall Effect Sensor Angle External Magnet, Not Included Wire Leads
Actuator Type	External Magnet, Not Included
