CUI, Inc.

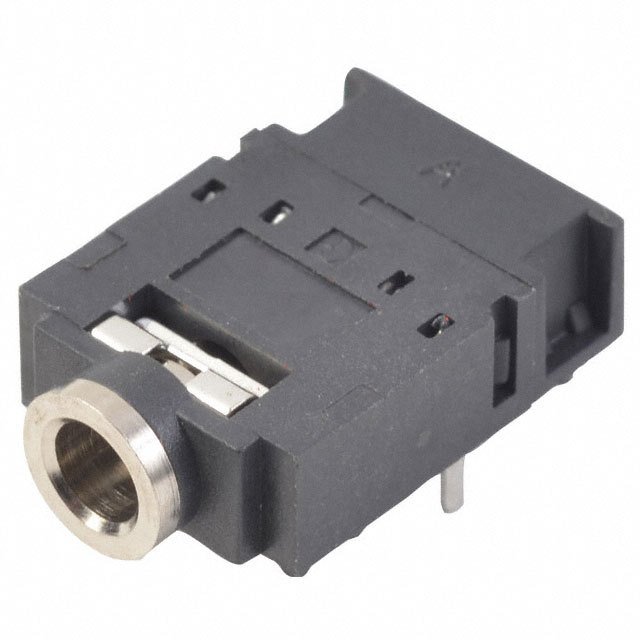

| Part Number | SJ-3566AN | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK STEREO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65498 pcs | Data sheet | SJ-3566AN.pdf |
| Voltage - Rated | 12VDC | Thread Size | - |
| Termination | Solder | Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded | Series | SJ |
| Panel Hole Size | - | Packaging | Bulk |
| Other Names | CP-SJ-3566AN Q848121 SJ-3566AN-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Mating Length/Depth | 0.551" (14.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Gender | Female |
| Features | - | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Silver, Tin |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
