PJ-041H

CUI, Inc.CUI, Inc.

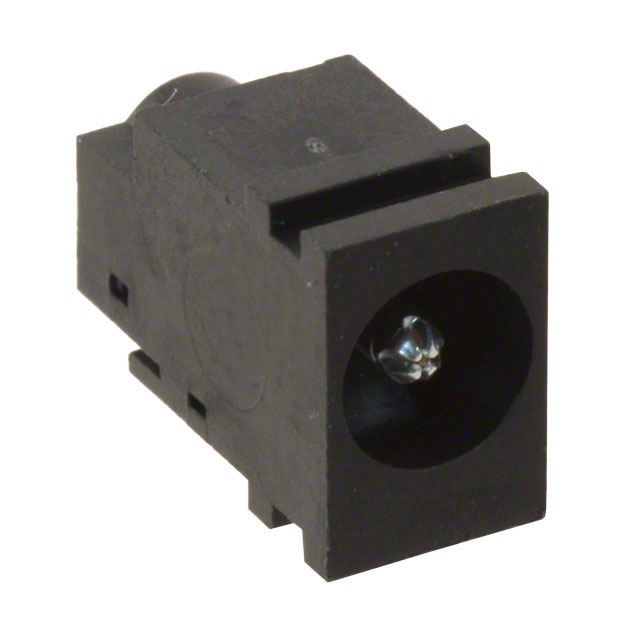

PJ-041H Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PJ-041H
Manufacturer/Brand: CUI, Inc.
Product description CONN PWR JACK 1.75X4.75MM SOLDER
Datasheets: PJ-041H.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 149764 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 149764 pcs
Reference Price (In US Dollars)
1 pcs
$0.286
10 pcs
$0.25
25 pcs
$0.236
50 pcs
$0.226
100 pcs
$0.216
250 pcs
$0.196
500 pcs
$0.177
1000 pcs
$0.157
2500 pcs
$0.142
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.286

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PJ-041H

Part Number PJ-041H Manufacturer CUI, Inc.
Description CONN PWR JACK 1.75X4.75MM SOLDER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 149764 pcs Data sheet PJ-041H.pdf
Voltage - Rated 24VDC Thread Size -
Termination Solder Shielding Unshielded
Series - Packaging Bulk
Other Names 045-1165R
CP-041H
PJ041H
Operating Temperature -25°C ~ 85°C
Number of Positions/Contacts 2 Conductors, 3 Contacts Mounting Type Through Hole, Right Angle
Mounting Feature - Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Length/Depth 0.315" (8.00mm) Material Flammability Rating UL94 V-0
Manufacturer Standard Lead Time 12 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Internal Switch(s) Single Switch, Normally Closed Insulation Color -
Ingress Protection - Industry Recognized Mating Diameter 1.75mm ID (0.068"), 4.75mm OD (0.187")
Includes - Housing Material Polyamide (PA66), Nylon 6/6
Gender Male Features Board Guide
Detailed Description Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Through Hole, Right Angle Current Rating 5A
Contact Material - Plating Silver Contact Material Brass; Copper Alloy
Connector Type Jack California Prop 65 Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Body Material - Body Color Black
Actual Diameter 0.065" (1.65mm ID), 0.203" (5.15mm OD)
