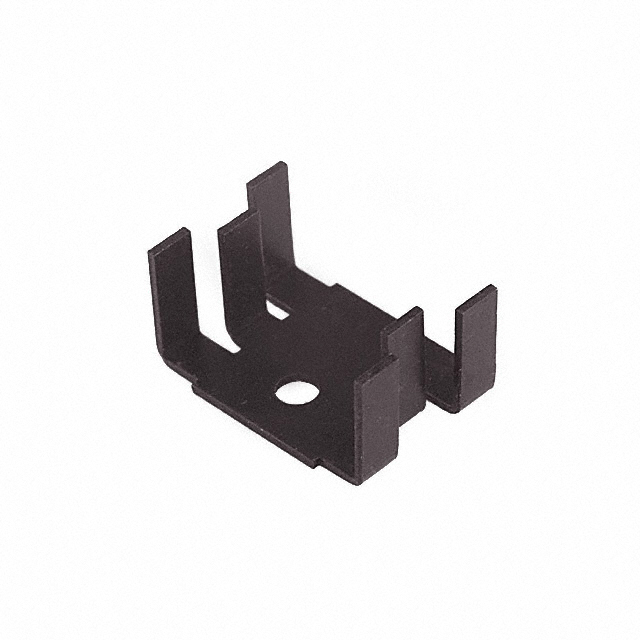

PA1-1CB

CTS Electronic Components

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA1-1CB
Manufacturer/Brand:	CTS Electronic Components
Product description	HEATSINK .50"H BLACK TO-220
Datasheets:	PA1-1CB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	78524 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 78524 pcs

Reference Price (In US Dollars)

1 pcs: $0.42

10 pcs: $0.401

25 pcs: $0.39

50 pcs: $0.379

100 pcs: $0.358

250 pcs: $0.337

500 pcs: $0.316

1000 pcs: $0.295

5000 pcs: $0.285

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.42

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA1-1CB

Part Number	PA1-1CB	Manufacturer	CTS Electronic Components
Description	HEATSINK .50"H BLACK TO-220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78524 pcs	Data sheet	PA1-1CB.pdf
Width	1.000" (25.40mm)	Type	Board Level
Thermal Resistance @ Natural	28.80°C/W	Thermal Resistance @ Forced Air Flow	-
Shape	Rectangular, Fins	Series	PA1
Power Dissipation @ Temperature Rise	-	Package Cooled	TO-126, TO-127, TO-220
Other Names	294-1039 PA11CB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	11 Weeks	Length	0.710" (18.03mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.500" (12.70mm)
Diameter	-	Detailed Description	Heat Sink TO-126, TO-127, TO-220 Aluminum Board Level
Attachment Method	Bolt On
