209-3LPST

CTS Electronic ComponentsCTS Electronic Components

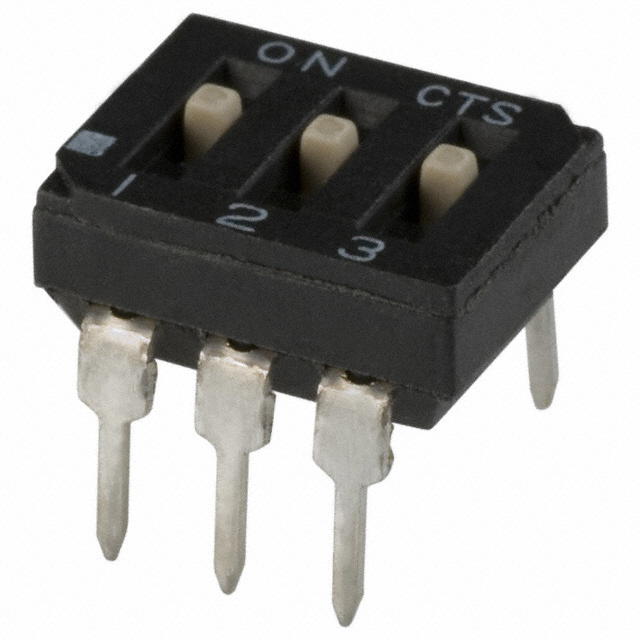

209-3LPST Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 209-3LPST
Manufacturer/Brand: CTS Electronic Components
Product description SWITCH SLIDE DIP SPST 100MA 20V
Datasheets: 209-3LPST.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 171879 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 171879 pcs
Reference Price (In US Dollars)
1 pcs
$0.235
10 pcs
$0.228
25 pcs
$0.215
60 pcs
$0.202
120 pcs
$0.193
300 pcs
$0.185
540 pcs
$0.167
1020 pcs
$0.154
5040 pcs
$0.125
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.235

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 209-3LPST

Part Number 209-3LPST Manufacturer CTS Electronic Components
Description SWITCH SLIDE DIP SPST 100MA 20V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 171879 pcs Data sheet 209-3LPST.pdf
Washable Yes Voltage Rating 20VDC
Termination Style PC Pin Series 209
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names 209003LPST
2093LPST
CT2093LPST
Operating Temperature -40°C ~ 85°C
Number of Positions 3 Mounting Type Through Hole
Mechanical Life - Manufacturer Standard Lead Time 4 Weeks
Length 0.358" (9.09mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Above Board 0.180" (4.57mm) Features Epoxy Sealed Terminals, Tape Seal
Electrical Life 2,000 Cycles Detailed Description Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 100mA 20VDC
Current Rating 100mA Contact Material Beryllium Copper
Contact Finish Gold Circuit SPST
Body Material - Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
