CNC Tech

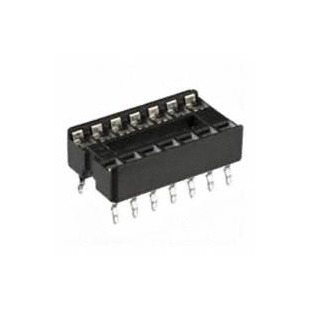

| Part Number | 245-14-1-03 | Manufacturer | CNC Tech |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 373939 pcs | Data sheet | 245-14-1-03.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.124" (3.15mm) |
| Termination | Solder | Series | - |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 1175-1487 245-14-1-03-ND 24514103 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Mounting Type | Through Hole, Kinked Pin | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 20 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
