CNC Tech
| Part Number | 243-40-1-06 | Manufacturer | CNC Tech |
|---|---|---|---|

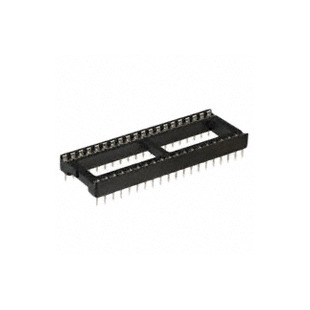

| Description | CONN IC DIP SOCKET 40POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 169485 pcs | Data sheet | 243-40-1-06.pdf |
| Type | DIP, 0.6" (15.24mm) Row Spacing | Termination Post Length | 0.124" (3.15mm) |
| Termination | Solder | Series | - |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 1175-1481 243-40-1-06-ND 24340106 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 40 (2 x 20) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Open Frame | Current Rating | 1A |
| Contact Resistance | 20 mOhm | Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
