CNC Tech
| Part Number | 210-1-20-003 | Manufacturer | CNC Tech |
|---|---|---|---|

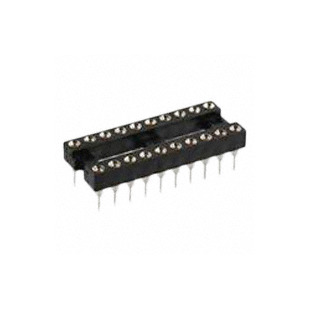

| Description | CONN IC DIP SOCKET 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89501 pcs | Data sheet | 210-1-20-003.pdf |
| Type | DIP, 0.3" (7.62mm) Row Spacing | Termination Post Length | 0.110" (2.78mm) |
| Termination | Solder | Series | - |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 1175-1471 210-1-20-003-ND 210120003 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 20 (2 x 10) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT) |
| Features | Open Frame | Current Rating | 3A |
| Contact Resistance | 4 mOhm | Contact Material - Post | Brass |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
