TDP04H0SB1

C&K

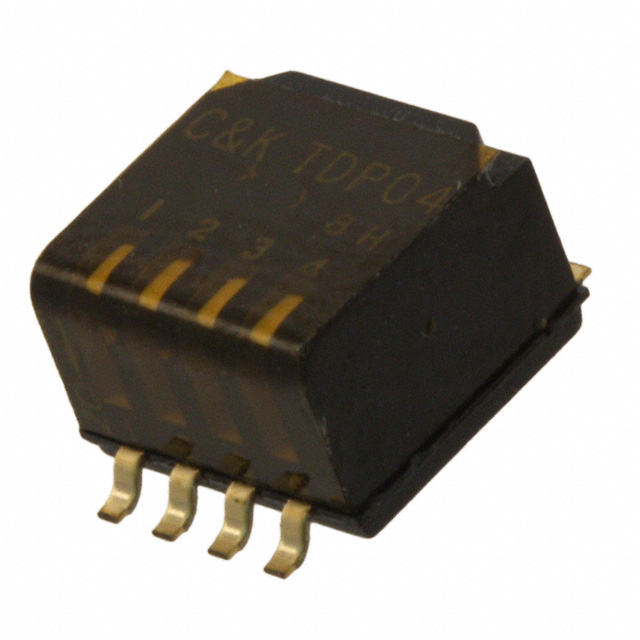

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TDP04H0SB1
Manufacturer/Brand:	C&K
Product description	SWITCH PIANO DIP SPST 25MA 24V
Datasheets:	TDP04H0SB1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65243 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 65243 pcs

Reference Price (In US Dollars)

1 pcs: $0.909

10 pcs: $0.883

25 pcs: $0.837

70 pcs: $0.783

140 pcs: $0.765

280 pcs: $0.655

560 pcs: $0.637

1050 pcs: $0.546

5040 pcs: $0.501

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.909

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TDP04H0SB1

Part Number	TDP04H0SB1	Manufacturer	C&K
Description	SWITCH PIANO DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65243 pcs	Data sheet	TDP04H0SB1.pdf
Washable	Yes	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	TDP
Pitch	0.050" (1.27mm), Half	Packaging	Tube
Other Names	*TDP04H0SB1 CKN9423	Operating Temperature	-40°C ~ 85°C
Number of Positions	4	Mounting Type	Surface Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	14 Weeks	Length	0.244" (6.20mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.164" (4.17mm)
Features	Tape Seal	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 4 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Type	Piano	Actuator Level	Flush, Recessed
