SDA12H1BD

C&K

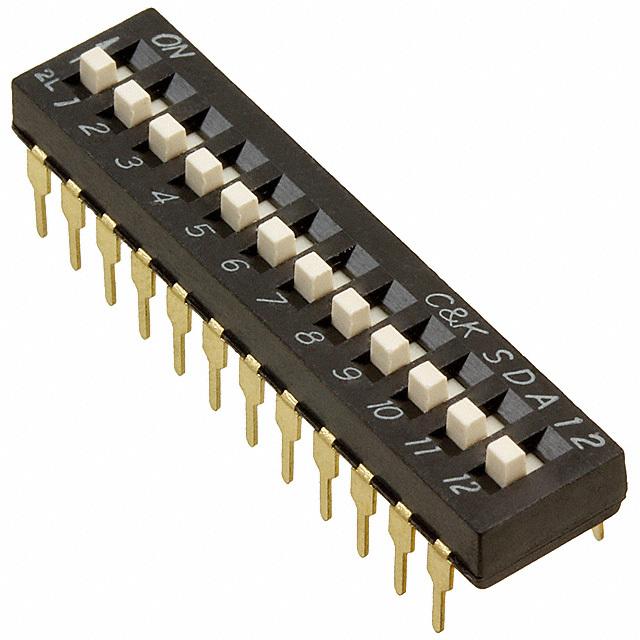

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDA12H1BD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	SDA12H1BD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	95434 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 95434 pcs

Reference Price (In US Dollars)

1 pcs: $0.719

14 pcs: $0.677

28 pcs: $0.649

56 pcs: $0.608

112 pcs: $0.594

252 pcs: $0.525

504 pcs: $0.497

1008 pcs: $0.442

5012 pcs: $0.387

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.719

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDA12H1BD

Part Number	SDA12H1BD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95434 pcs	Data sheet	SDA12H1BD.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	PC Pin	Series	SDA
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SDA12H1BD CKN6108	Operating Temperature	-40°C ~ 85°C
Number of Positions	12	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Length	1.279" (32.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.228" (5.80mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 12 Position Through Hole Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Raised
