C&K
| Part Number | SDA01H0BD | Manufacturer | C&K |
|---|---|---|---|

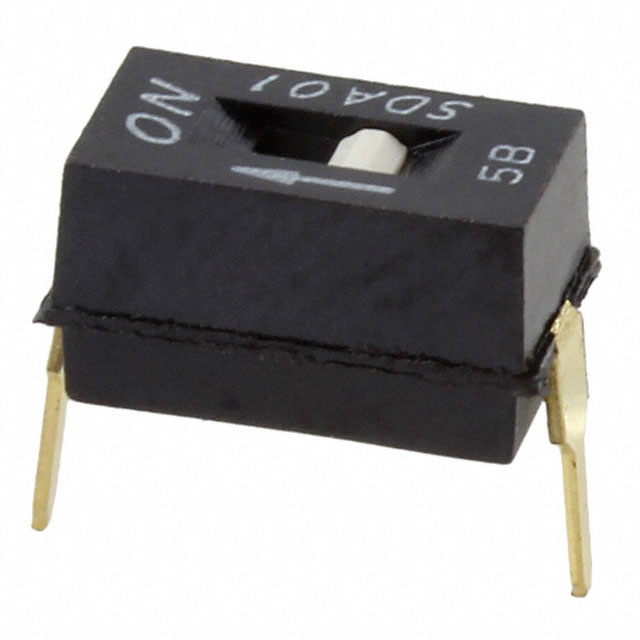

| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93486 pcs | Data sheet | SDA01H0BD.pdf |
| Washable | No | Voltage Rating | 24VDC |
| Termination Style | PC Pin | Series | SDA |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *SDA01H0BD CKN10920 PTS645SM702LFS SDA01H0BD-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000 Cycles |
| Manufacturer Standard Lead Time | 16 Weeks | Length | 0.178" (4.52mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.183" (4.65mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 1 Position Through Hole Slide (Standard) Actuator 25mA 24VDC | Current Rating | 25mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
